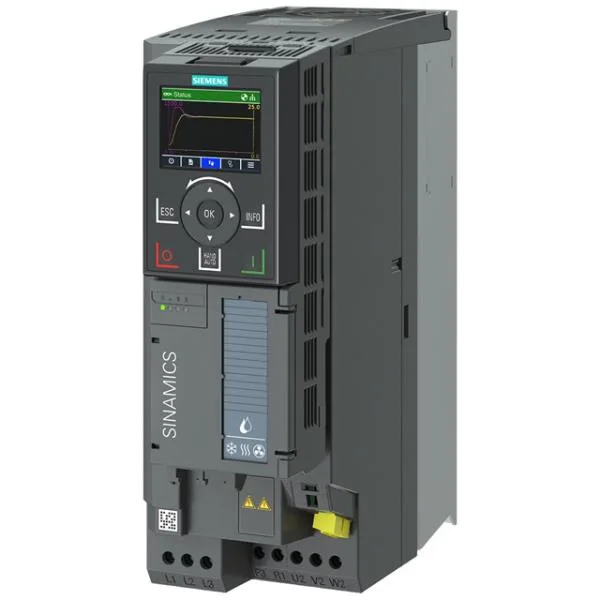

Siemens 6SL32203YE200UF0
MPN6SL32203YE200UF0
G120X IP20 380.480V 4KW FSB UF|G120X IP20 380.480V 4KW FSB UF
$576.58 – $1,137.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series | SINAMICS G120X |
| Interface | PROFINET;EtherNet/IP |
| Termination type | Screw Terminal |
| Relay output type | 1x 30 VDC @ 5 A |
| Digital output type | Relay |
| Operating voltage max. | 480 V |
| Operating voltage min. | 380 V |
| Current | 9.8 A |
| Rated power | 4 kW |
| Input frequency max. | 63 Hz |
| Input frequency min. | 47 Hz |
| Output frequency max. | 550 Hz |
All specifications
| Parameter | Value |
|---|---|
| Output frequency min. | 0 Hz |
| Clock (Pulse frequency max.) | 4 kHz |
| Input phases | 3 |
| Output phases | 3 |
| Operating temperature max. | 45 °C |
| Operating temperature min. | -20 °C |
| Depth | 218 mm |
| Width | 73 mm |
| Height | 232 mm |
| IP rating | IP20 |
MPN
6SL32203YE200UF0
