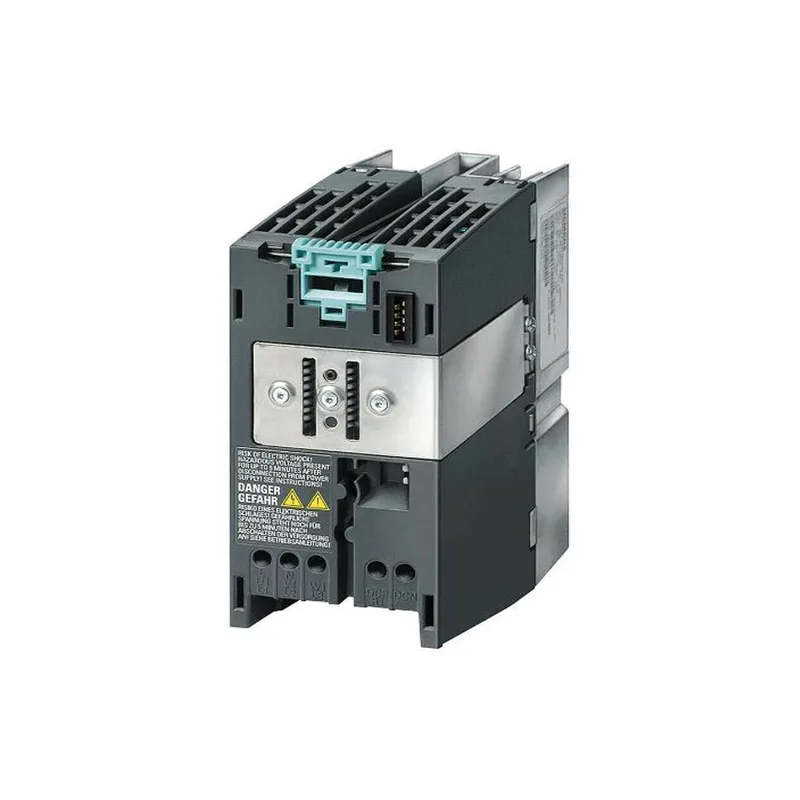

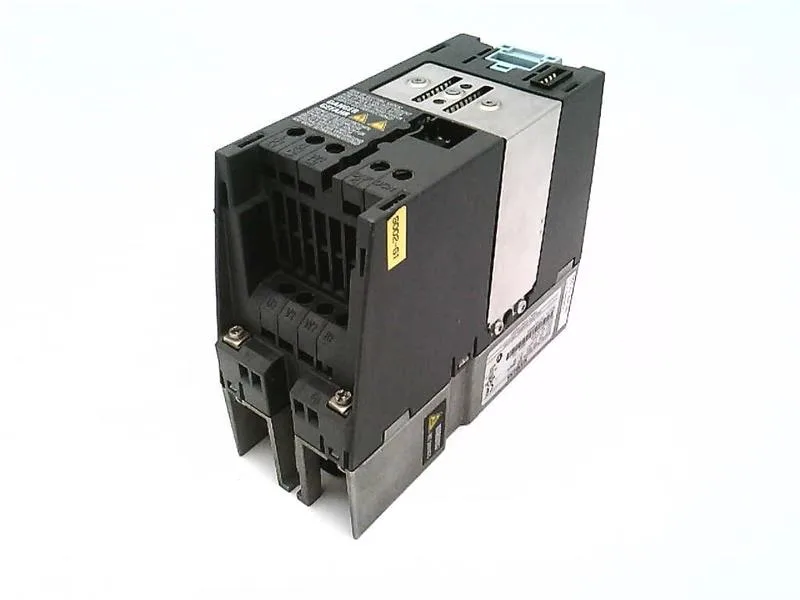

The Siemens 6SL3224-0BE13-7UA0 is a SINAMICS G120 PM240 Power Module — the power stage for a modular drive system. It's unfiltered and includes an integrated braking chopper. Without a Control Unit and BOP, it's a bare power section that mates with a CU via the standard G120 interface. Rated for 380-480 V AC three-phase, +10/-10%, 47-63 Hz. Power rating under high overload: 0.37 kW at 200% for 3 s, 150% for 57 s, 100% for 240 s. Ambient temperature range -10 to +50 °C. Physical size is 173 x 73 x 145 mm (HxWxD), frame size FSA, degree of protection IP20 — suitable for enclosure mounting, not for washdown environments.
The FSA frame size is the smallest in the PM240 family, so it fits tight spaces — 73 mm wide leaves room for wiring ducts and a CU side-mount. The integrated braking chopper is a practical feature for applications with short deceleration cycles or overhauls — no external braking resistor needed for light loads, but for full rated braking torque, plan for an external resistor across the DC bus terminals.
