The Siemens 6SL3224-0BE22-2AA0 is a SINAMICS G120 PM240 power module — the power stage that drives the motor in a G120 drive system. It is a spare part, meaning it ships without a Control Unit or BOP (Basic Operator Panel); you pair it with a CU2xx series Control Unit to complete the drive. The module includes an integrated Class A EMC filter and an integrated braking chopper, so it meets conducted-emission limits for industrial environments and can handle regenerative energy from decelerating loads without an external braking resistor in many applications. Rated for 380-480 V 3 AC ±10%, 47-63 Hz, it delivers 2.2 kW under high overload duty: 200% rated current for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds. That overload profile suits applications with short, heavy peak demands — conveyors starting under load, crushers, or mixers that need a torque burst to break inertia. The ambient temperature range is -10 to +50 °C, which covers most ventilated enclosures without derating.

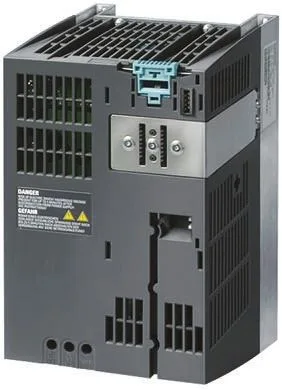

Siemens 6SL3224-0BE22-2AA0 SINAMICS G120 PM240 Power Module,
Siemens SINAMICS G120 PM240 Power Module, 6SL3224-0BE22-2AA0, 2.2 kW high overload, 380-480 V 3 AC, integrated filter class A, integrated braking chopper, IP20, FSB size.
Specifications
| Parameter | Value |
|---|---|
| Weight | 1.81 kgs |
Product details
Frequently asked questions
What is the overload capability of this PM240 module?
Under high overload duty, it delivers 200% rated current for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds. This is the key rating for sizing the drive to the load profile.
Where can I buy 6SL3224-0BE22-2AA0?
This part is sourced to order through our independent distribution network. Submit an RFQ for current availability and pricing — we confirm both at quote time.
Does this module include an EMC filter and braking chopper?
Yes, it has an integrated Class A EMC filter and an integrated braking chopper. The filter meets conducted-emission limits for industrial environments; the chopper allows the drive to handle regenerative energy without an external braking resistor in many applications.
