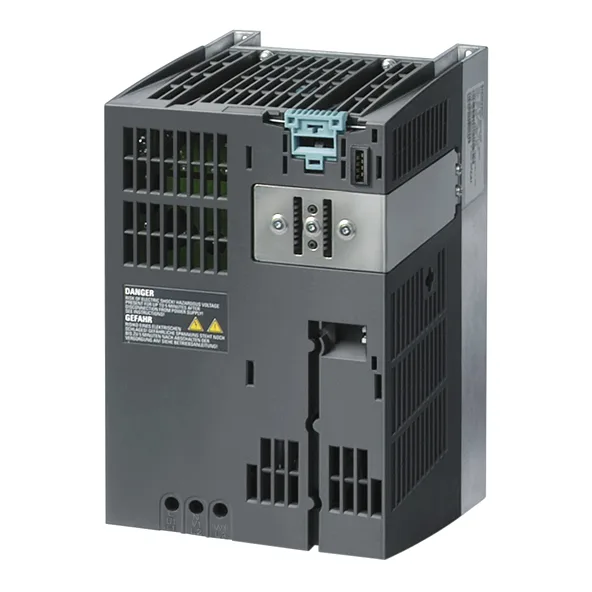

Siemens SINAMICS G120 Power Module PM240 Unfiltered, 2.2 kW, 380-480 VAC, IP20, FSB frame size, integrated braking chopper, 6SL3224-0BE22-2UA0.
| Parameter | Value |
|---|---|
| Product type | SINAMICS G120 Power Module PM240 Unfiltered |
| Parameter | Value |
|---|---|
| Line frequency | 50 Hz |
| Parameter | Value |
|---|---|
| Weight | 4 Kg |
| Parameter | Value |
|---|---|
| Back supply | No |
| Rated output | 2.2 kW |
| Dimensions (LxWxH) | 16.5cm x 15.3cm x 27cm |
| Input voltage (maximum) | 480 V |
| Input voltage (minimum) | 380 V |
Rated for high overload duty: 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds. That means it can deliver 4.4 kW peak for short intervals to clear a stalled load or accelerate a high-inertia fan. Ambient temperature range is -10 to +50 °C per the spec — no derating needed up to 40 °C, but above that consult the thermal curve.
This part is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm lead time and price.
Rated output is 2.2 kW at 380-480 VAC three-phase, 50 Hz line frequency. High overload capability allows 200% for 3 seconds.
Yes, the PM240 has an integrated braking chopper, so you can add an external braking resistor for dynamic braking without an additional module.
