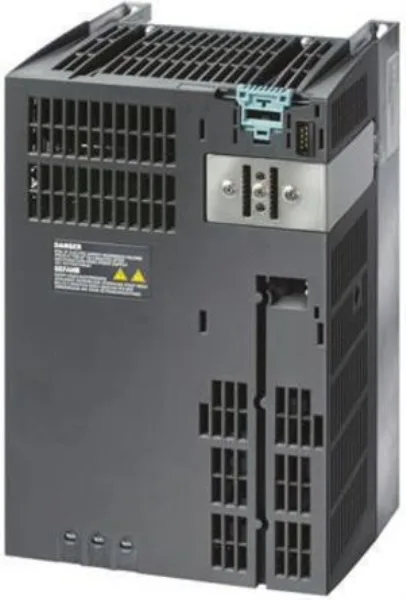

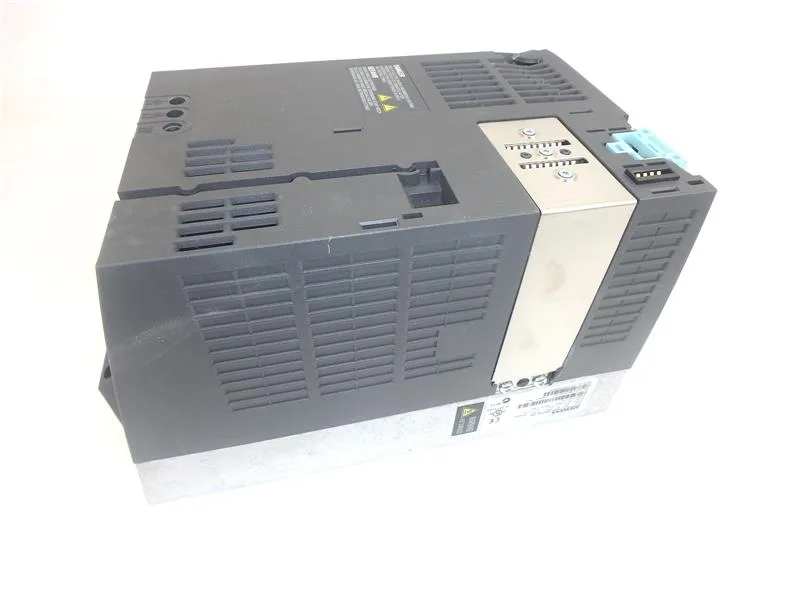

The Siemens 6SL3224-0BE25-5UA0 is a SINAMICS G120 PM240 Power Module — the power stage of the modular G120 drive family, designed to pair with a separate Control Unit (CU) and BOP. It's an unfiltered unit with an integrated braking chopper, rated for 380-480 V 3 AC at 47-63 Hz. In high-overload duty it delivers 5.5 kW at 200% for 3 s, 150% for 57 s, and 100% for 240 s, with an ambient range of -10 to +50 °C. Low-overload rating is 7.5 kW at 150% for 3 s, 110% for 57 s, and 100% for 240 s, with ambient up to +40 °C. The enclosure measures 334 x 189 x 185 mm (HxWxD) and carries an IP20 degree of protection — intended for clean, dry cabinet installation, not washdown environments.
The PM240 module mounts directly onto a DIN rail inside a control cabinet. It requires a Control Unit (e.g., CU240E-2) and a BOP for operation — neither is included. The integrated braking chopper handles dynamic braking for vertical loads or rapid deceleration profiles without an external braking module. The IP20 rating means it's suited for panel-mount use only; keep it away from washdown zones or outdoor exposure.
