Power module specs and overload profile

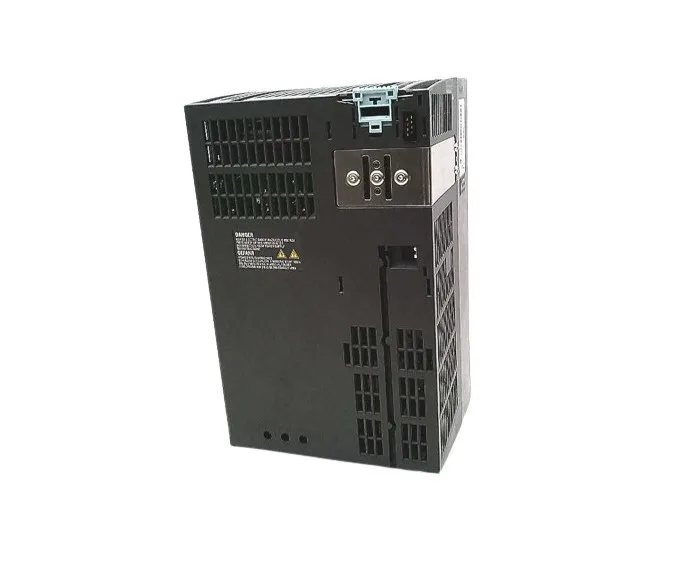

The Siemens 6SL3224-0BE27-5UA0 is a SINAMICS G120 PM240 Power Module — a spare part for the drive platform, unfiltered and fitted with an integrated braking chopper. It runs on 380-480 V AC three-phase, 47-63 Hz, and delivers two overload duty cycles: high overload at 7.5 kW (200% for 3 s, 150% for 57 s, 100% for 240 s) up to 50 °C ambient, and low overload at 11 kW (150% for 3 s, 110% for 57 s, 100% for 240 s) up to 40 °C ambient. The IP20 enclosure (334 x 189 x 185 mm) is intended for cabinet mounting — no Control Unit or BOP included.
