Siemens 6SL3224-0BE31-1UA0 — AC Drives (VFD)

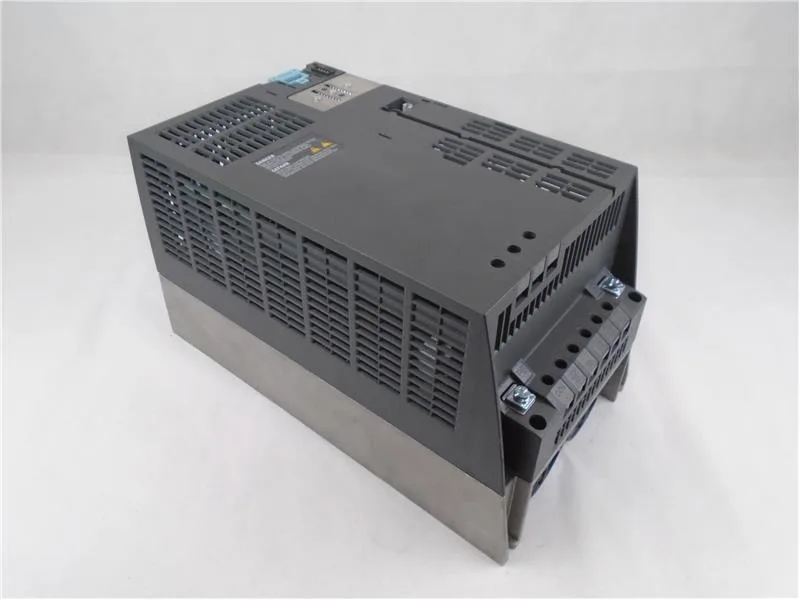

Siemens 6SL3224-0BE31-1UA0 SINAMICS G120 PM240 Power Module,

MPN6SL3224-0BE31-1UA0

Siemens SINAMICS G120 PM240 Power Module, spare part, unfiltered with integrated braking chopper, 380-480 V 3 AC, 11 kW high overload / 15 kW low overload, IP20, 334 x 189 x 185 mm.

$1,417.32 – $1,903.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6SL3224-0BE31-1UA0 — Specifications
ParameterValue
Datum: 12.01.2021Änderungen vorbehalten © Copyright Siemens 2021

Product details

The Siemens 6SL3224-0BE31-1UA0 is a SINAMICS G120 PM240 Power Module — a spare part, unfiltered, with an integrated braking chopper, designed to pair with a Control Unit (not included) to form a complete drive system. Rated for 380-480 V 3 AC ±10%, 47-63 Hz, it delivers 11 kW under high overload (HO: 200% for 3 s, 150% for 57 s, 100% for 240 s at -10 to +50 °C) and 15 kW under low overload (LO: 150% for 3 s, 110% for 57 s, 100% for 240 s at -10 to +40 °C). The HO rating matters for real-world motor starting: a pump or conveyor that occasionally needs 200% torque for a few seconds will stay within the module's thermal budget without tripping.

The datasheet carries a revision date of 12.01.2021, which is the most recent published specification — always check for any newer PCN before committing a BOM line to a long production run.

Frequently asked questions

What are the key ratings for 6SL3224-0BE31-1UA0?

It delivers 11 kW high overload (200% for 3 s) and 15 kW low overload (150% for 3 s) on a 380-480 V 3 AC supply, with an integrated braking chopper and IP20 protection.

MPN
6SL3224-0BE31-1UA0
