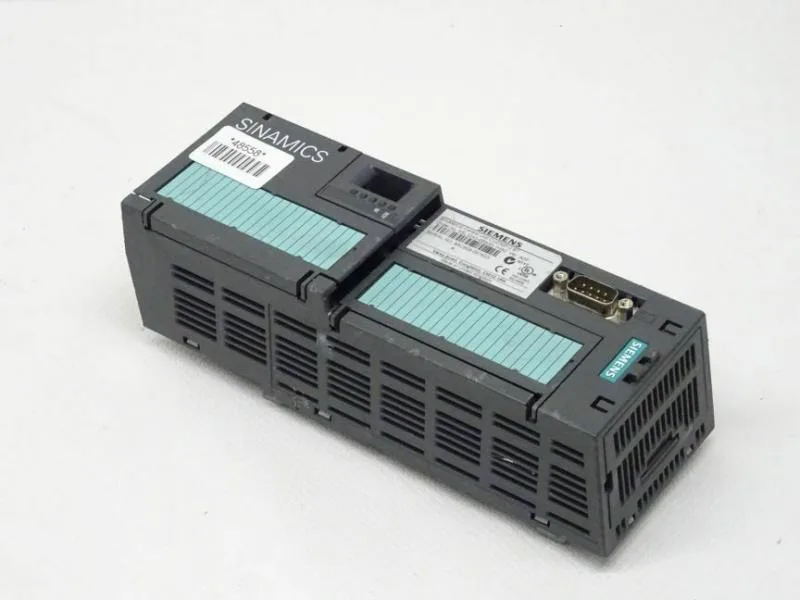

The Siemens 6SL3243-6BB30-1HA2 is a SINAMICS G120P BT Control Unit, order code CU230P-2 BT, designated as a spare part for the drive platform. It carries 6 digital inputs, 3 digital outputs, 4 analog inputs, 2 analog outputs, one motor temperature sensor input, two PSU outputs (10 V DC, 24 V DC), one PSU input (24 V DC), plus USB and MMC interfaces, all in an IP20 enclosure.
Integration Note
Mounts in a standard control cabinet on the DIN rail. Communication is fixed to USS, MODBUS RTU, or BACnet MS/TP; no PROFINET or EtherCAT onboard this variant.
