The Siemens 6SL3262-1FF00-0CA0 is a SINAMICS shield connection kit, listed as a spare part for the Power Module PM260 FSF. This kit provides the EMC shield termination hardware needed to bond motor and encoder cable shields to the drive's ground plane, a critical step for maintaining conducted and radiated emission compliance in variable-frequency drive installations.
Integration Note for the Drive Cabinet

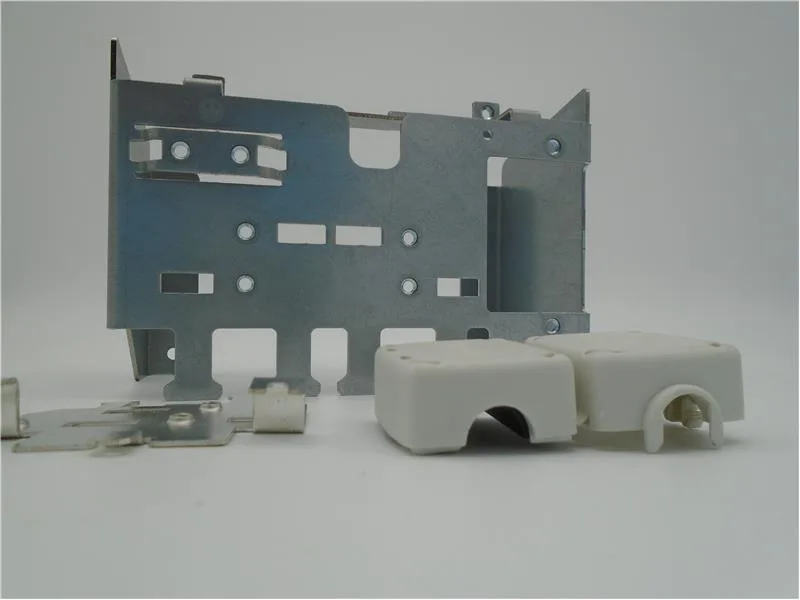

This shield connection kit is designed for the SINAMICS PM260 FSF power module frame. The kit includes the metal clamp and grounding bracket that fastens to the module's chassis, providing a low-impedance path for cable shields. In a typical cabinet build, the kit mounts adjacent to the power module's cable entry, and the shield is stripped and clamped before the conductors reach the terminal block. Proper installation keeps the shield bond length under 50 mm to avoid degrading the EMC filter's performance above 1 MHz.
