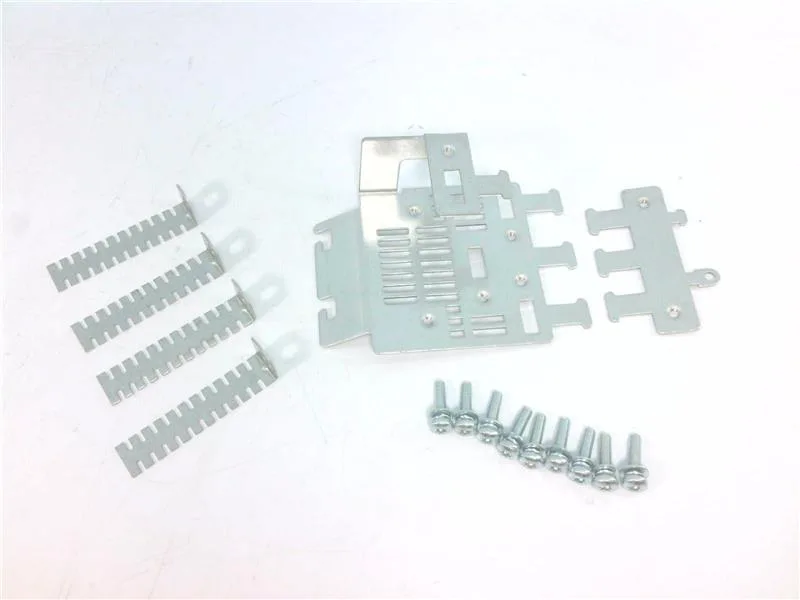

The Siemens 6SL3266-1EB00-0DA0 is the shield plate assembly for the SINAMICS G120 drive family, specifically the FSB push-through variant. It comes as a kit including the shield plate and the mounting hardware needed to fit it to the drive chassis. This part is a mechanical accessory — it clamps the incoming motor and line cable shields to the drive's metal backplane, keeping high-frequency noise from the power stage out of the control wiring. On a G120 FSB frame, the push-through mounting means the drive body passes through the panel cutout and the shield plate sits on the rear side, making a continuous ground plane across the cable entry.
If you are freezing a new design with the G120 FSB push-through, this is the matching accessory — no substitution needed.
Installation Note
The shield plate mounts on the rear of the panel cutout for the push-through G120 FSB. The kit includes the plate and the mounting accessories — screws, clips, or brackets as required for that frame size. It is a mechanical fit, not an electrical module; no wiring or configuration is involved.
