Siemens 6SL3330-7TH41-3AA0 — AC Drive (VFD) 600V

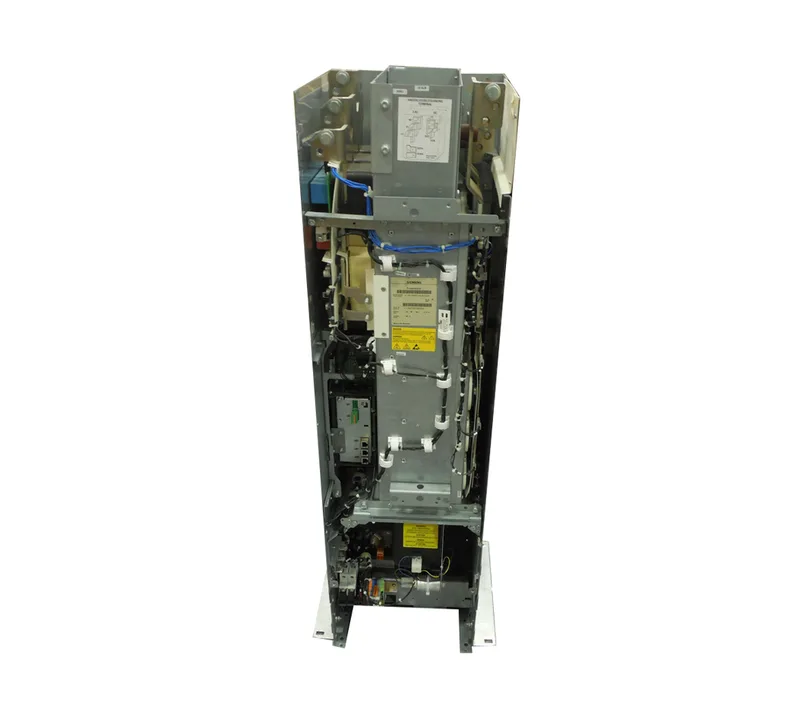

Siemens 6SL3330-7TH41-3AA0 SINAMICS Active Line Module, 1400

MPN6SL3330-7TH41-3AA0

Siemens SINAMICS Active Line Module, 3-phase AC 660-690V, 50/60Hz, 1270A, output 890-1035V DC, rated output 1400 kW, chassis unit IP00, internal air cooling, incl. DRIVE-CLiQ cable.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Product details

The Siemens 6SL3330-7TH41-3AA0 is a SINAMICS Active Line Module — the front-end rectifier stage that supplies a regulated DC bus (890–1035 V DC) from a 660–690 V AC three-phase supply, rated for 1270 A input and 1400 kW output. This is the chassis unit, IP00, with internal air cooling, and it ships with the DRIVE-CLiQ cable for communication back to the Control Unit.

The 1270 A input rating at 660–690 V AC tells you this module is sized for high-power drives — think large pumps, conveyors, or extruders in the megawatt range. The 1400 kW rated output is the continuous power it can deliver to the DC bus, so match it to a motor drive or inverter that draws within that envelope. The 890–1035 V DC output range is the regulated bus voltage; your downstream inverters must accept that DC link voltage. IP00 means it is an open chassis — no enclosure protection. Internal air cooling means the cabinet must have adequate ventilation or forced-air cooling to handle the heat rejection. The DRIVE-CLiQ cable is included, so you do not need to order it separately for the communication link to the Control Unit.

Frequently asked questions

What are the key ratings for 6SL3330-7TH41-3AA0?

It is a 3-phase AC 660-690V, 50/60Hz module with 1270A input, output of 890-1035V DC, and a rated output of 1400 kW. It is a chassis unit, IP00, with internal air cooling and includes a DRIVE-CLiQ cable.
