DC Link Module for SINAMICS Drives

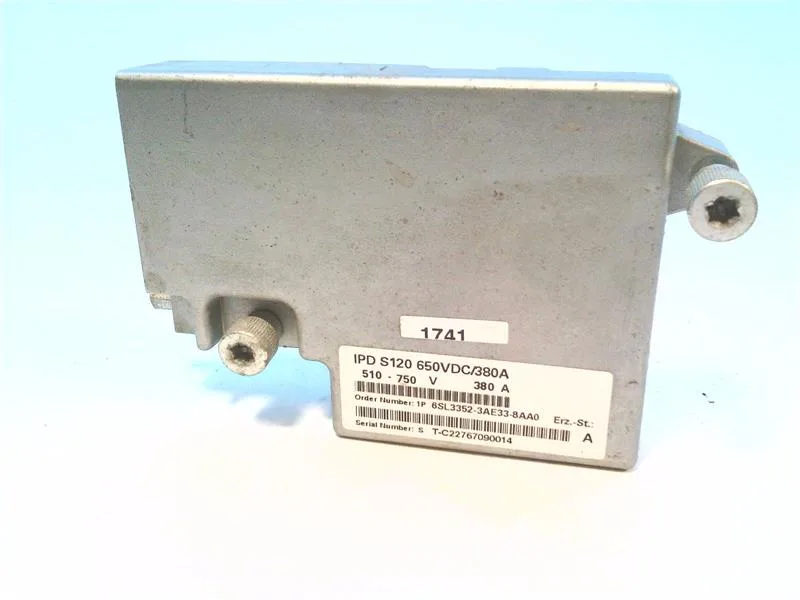

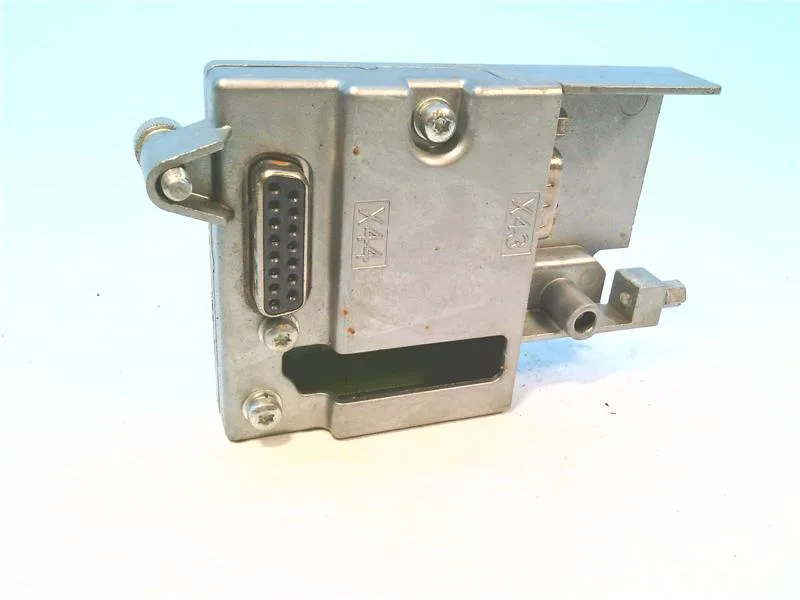

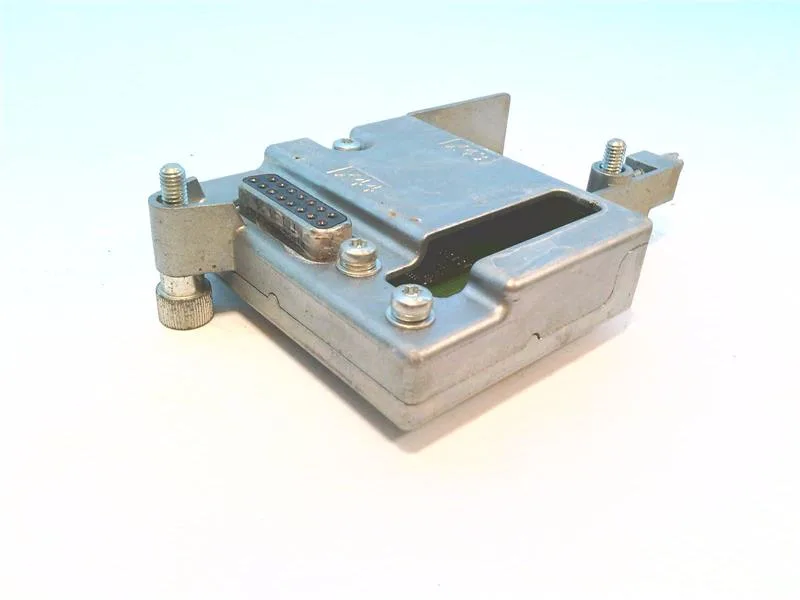

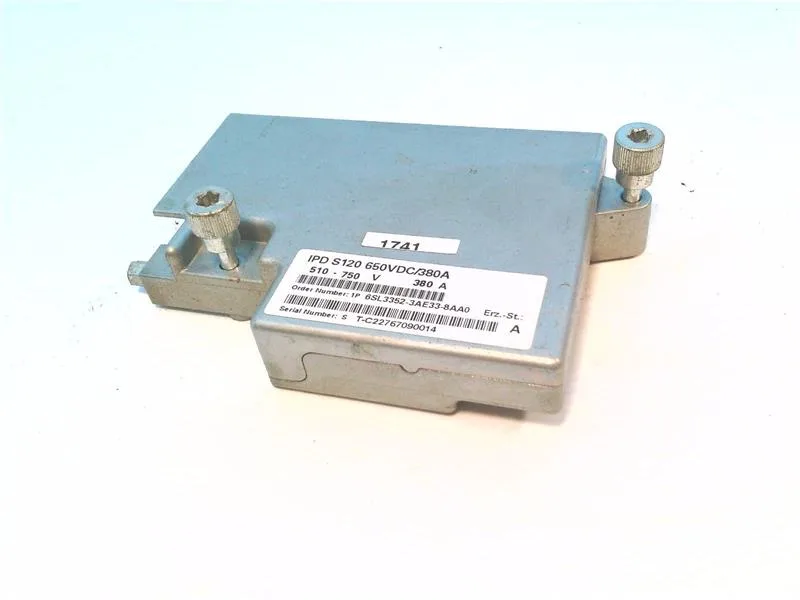

The SIEMENS 6SL33523AE338AA0 is a DC link module from the SINAMICS drive family, rated for 510-720 V DC and 380 A continuous current. This is the bulk capacitor and bus interface that sits between the line-side rectifier and the motor-side inverter in a common DC bus configuration — a single point of failure if it goes, so the DC bus architecture matters. In a multi-axis line, a shared DC link lets regenerative energy from one axis feed another, cutting braking resistor duty and improving overall efficiency.
The 380 A continuous rating governs the total current the DC link bus can carry to the inverter stages. For a multi-motor line, sum the DC bus current draws of all connected drives and keep the total under this number. The 510-720 V DC range matches standard 400-480 V AC line-fed rectifiers after the three-phase bridge — the DC bus sits at roughly 1.35× the AC line voltage under load. Verify your rectifier output voltage falls within this band before committing the BOM line.
