Drive specs and deployment context

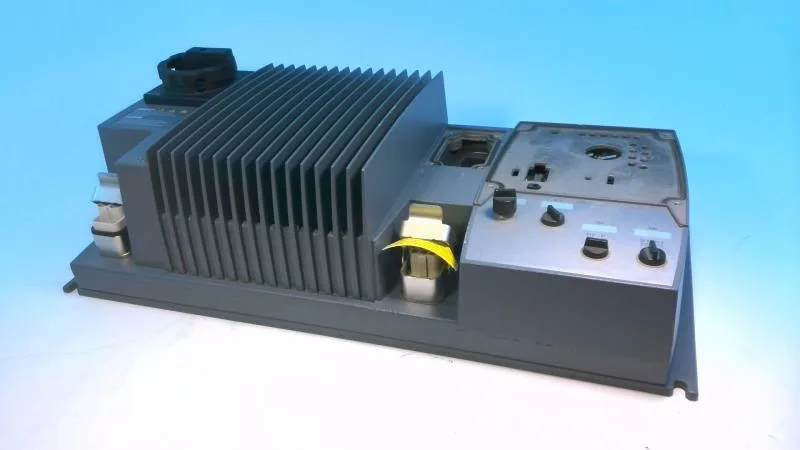

The Siemens 6SL3511-0PE25-5AM0 is a SINAMICS G110D AC drive rated for 5.5 kW under high overload — delivering 200% current for 3 seconds and 150% for 60 seconds, with 100% continuous duty. It accepts 380-500 V three-phase input at 47-63 Hz and includes an integrated Class A EMC filter and a braking chopper. The IP65 enclosure (210 x 450 x 240 mm, FSC) means it mounts directly on the machine frame or wall in washdown areas, no separate cabinet needed.
The G110D uses an AS-Interface bus interface for control, so it drops into an AS-i network without a separate fieldbus gateway. The integrated braking chopper handles dynamic deceleration for loads like conveyors or fans — no external brake resistor needed for moderate duty cycles. Ambient temperature range is -10 to +40 °C; above that, derate the output current per the thermal curve in the manual.
