Power module for distributed drive applications

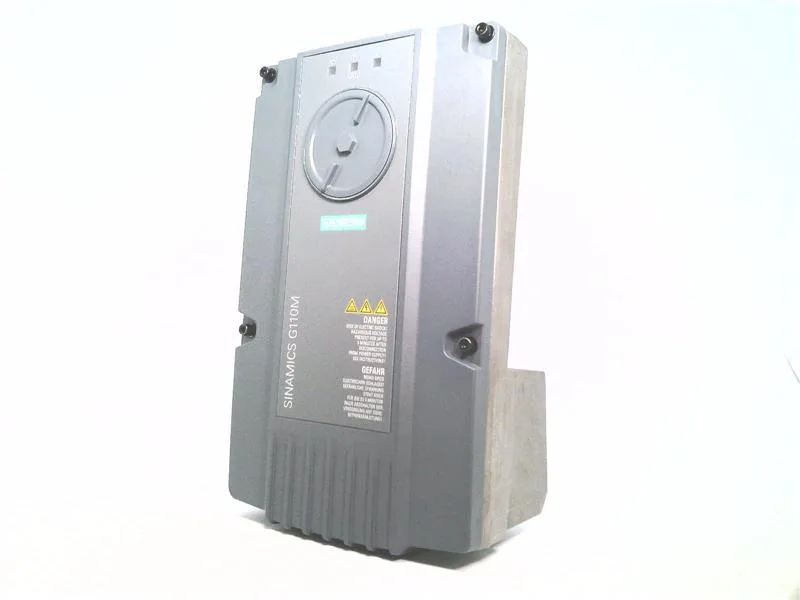

The Siemens 6SL3517-1BE12-3AM0 is a SINAMICS G110M Power Module PM240M designed for distributed motor control in washdown or dusty environments. It carries an IP65 degree of protection, meaning the enclosure and the integrated Class A filter are sealed against hose-directed water and dust ingress — suitable for food-and-bev lines or material-handling zones where a standard IP20 drive would require a separate cabinet. Rated for 380-480 V 3 AC at 47-63 Hz, this module delivers 0.75 kW under high-overload duty: 200 % for 3 s, 150 % for 57 s, and 100 % for 240 s. That overload profile means it can handle short-duration peak torque demands — a conveyor restart under load or a mixer clearing a jam — without tripping. The ambient temperature range spans -10 to +55 °C. At the upper end, the drive still delivers its rated output; above that, the thermal derating curve in the datasheet governs the usable current. The SD/MMC card slot allows parameter cloning or firmware updates without a laptop on the line.
The lifecycle stage for this order code is listed as mature. The datasheet carries a revision date of 05.03.2021 with the standard Siemens copyright and change-reservation notice. That date anchors the technical baseline; any PCN or firmware revision after that point would be documented separately.

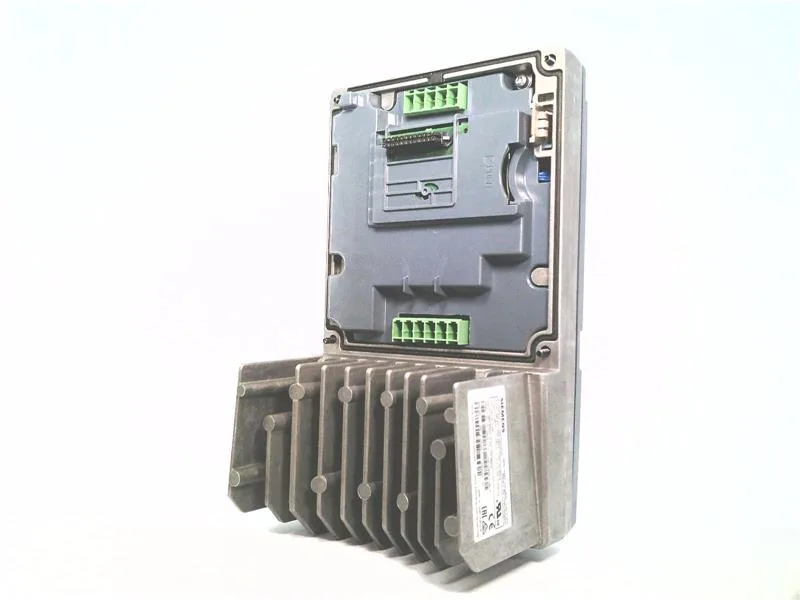

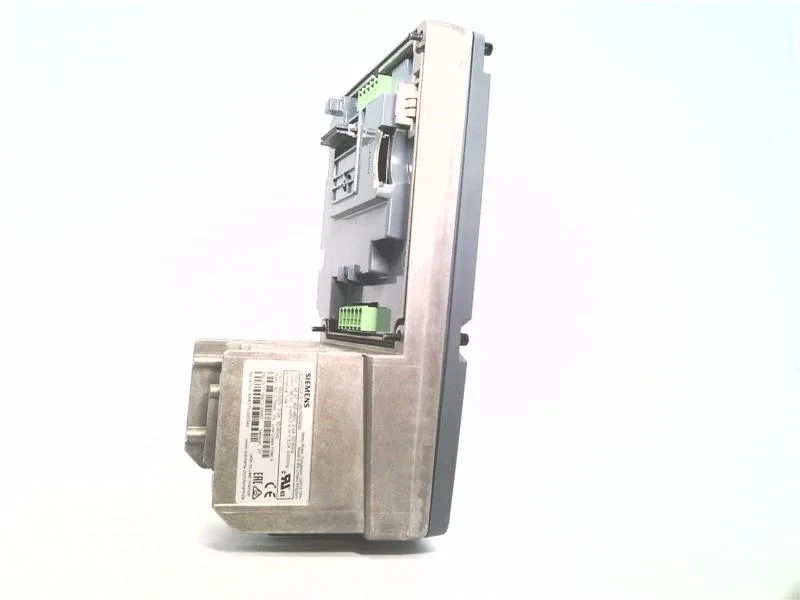

The housing measures 135 x 161 x 270 mm (HxWxD) in the FSA frame size, without a Control Unit attached. The IP65 enclosure means the power and motor cables enter through sealed glands — plan the gland-plate layout before mounting. No DIN-rail clip is used; the module bolts directly to a backplate or machine frame. The integrated Class A filter meets conducted-emission limits for industrial environments. Mount the module close to the motor to keep the shielded motor cable short.
