Siemens 6SL3544-0FB20-1PA0 — now in phase-out and being discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.
| Parameter | Value |
|---|---|
| Series | Ordering Data Overview |
| REACH art. 33 duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0,1 % (w / w) |
| Packaging dimensions (L x w x h) | 278.00 x 208.00 x 90.00 mm |
| Compliance with the substance restrictions according to RoHS directive | Since: 12-07-17 |
| Group code | R220 |
| Product group | 2246 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity unit | 1 Piece |
| Packaging quantity | 1 |
| Export control regulations | AL : N / ECCN : N |

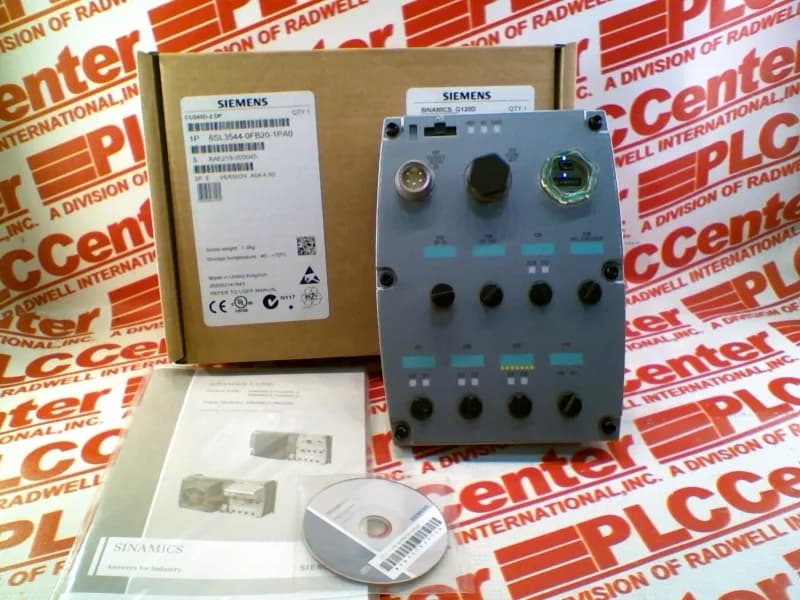

The 6SL3544-0FB20-1PA0 is a Siemens SINAMICS G120D CU240D-2 DP control unit with PROFIBUS-DP and integrated STO safety function. It provides 6 digital inputs (one fail-safe), 2 digital outputs, 2 analog inputs, a USB interface, an SD/MMC card slot, and an HTL encoder interface. The unit is rated IP65 and operates from -10 to +55 °C without a power module. Siemens has classified this part as phase-out.
