Control unit for distributed drives — PROFINET, IP65, motor brake

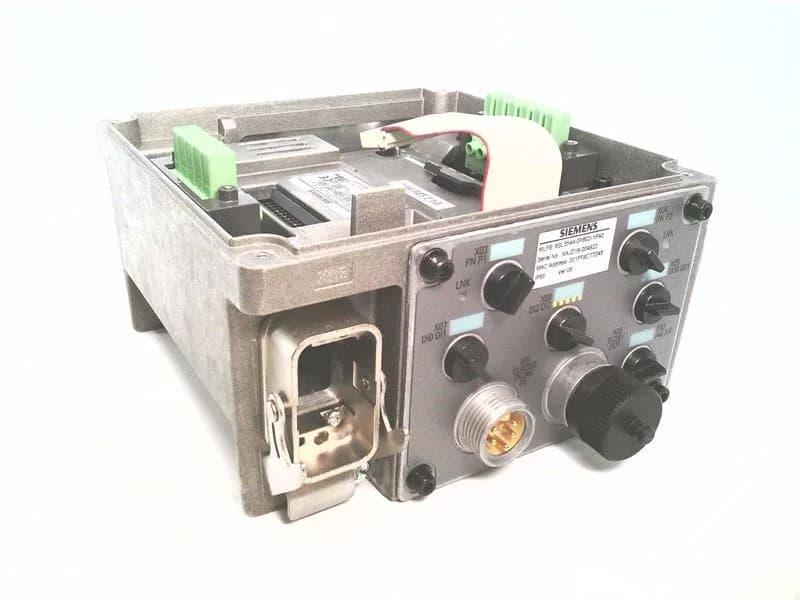

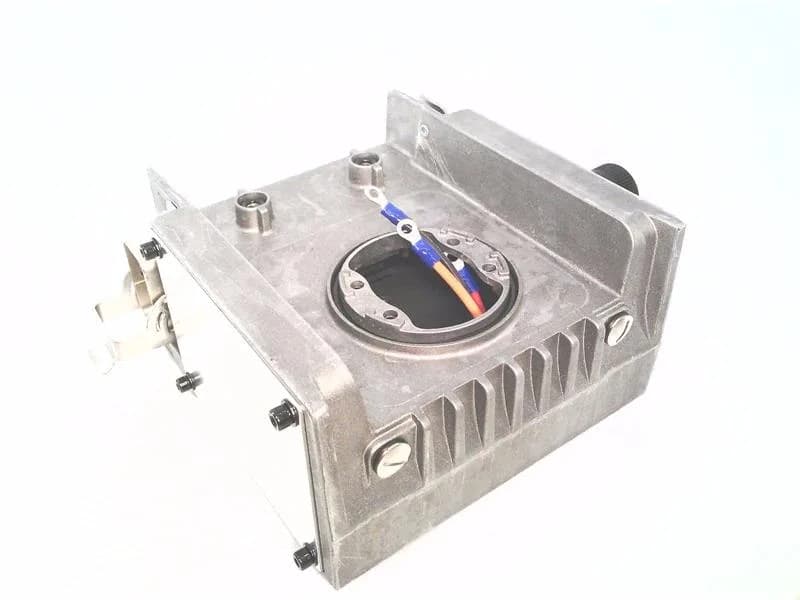

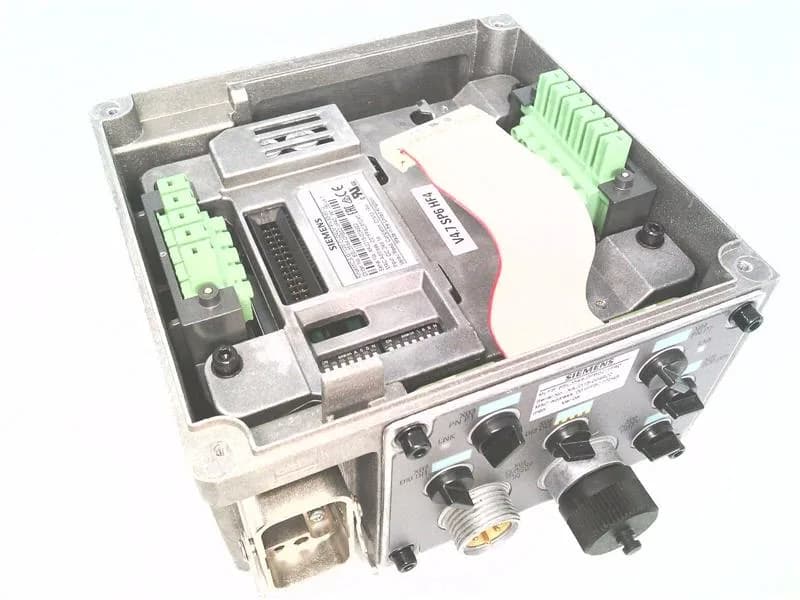

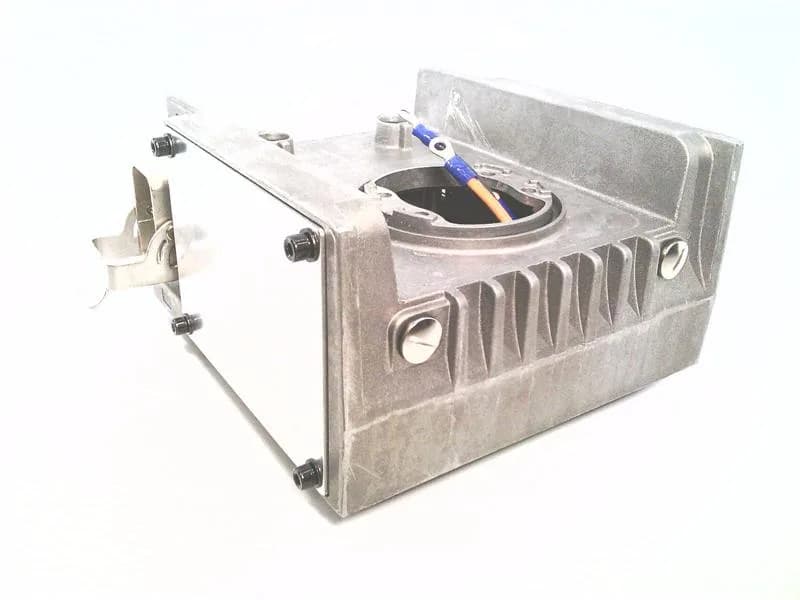

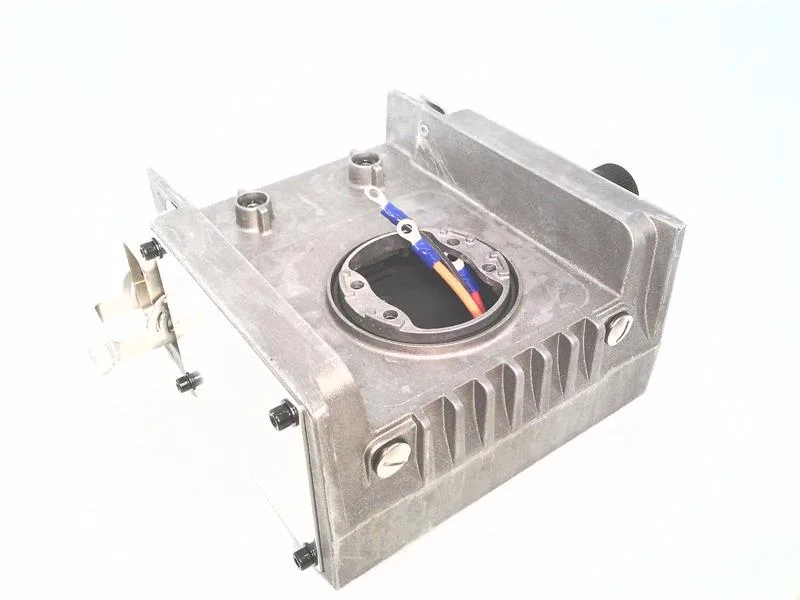

The Siemens 6SL3544-0PB02-1FA0 is a SINAMICS G110M Control Unit CU240M PN Q with PROFINET interface and plug-in connections. It provides 4 digital inputs, 2 digital outputs, 2 analog inputs, and 1 fail-safe digital input (F-DI) plus a PTC/KTY temperature sensor input and an electromagnetic brake control output. The IP65 enclosure rating means the unit withstands washdown environments — suitable for conveyor, packaging, or material-handling lines where dust and hose-directed water are present. Ambient operating range is -10 to +55 °C.
Integration notes — panel and field wiring
The CU240M PN Q mounts without a Power Module — it is the control head only, sized 105 x 171 x 216 mm (HxWxD). The IP65 housing allows direct machine-mount installation; no separate control cabinet is required for the electronics. PROFINET connectivity integrates into a standard industrial Ethernet network. The integrated EM brake control simplifies wiring for motor-holding brakes on vertical-axis or stop-hold applications.
