What the DN 200 bore means for pipeline fit

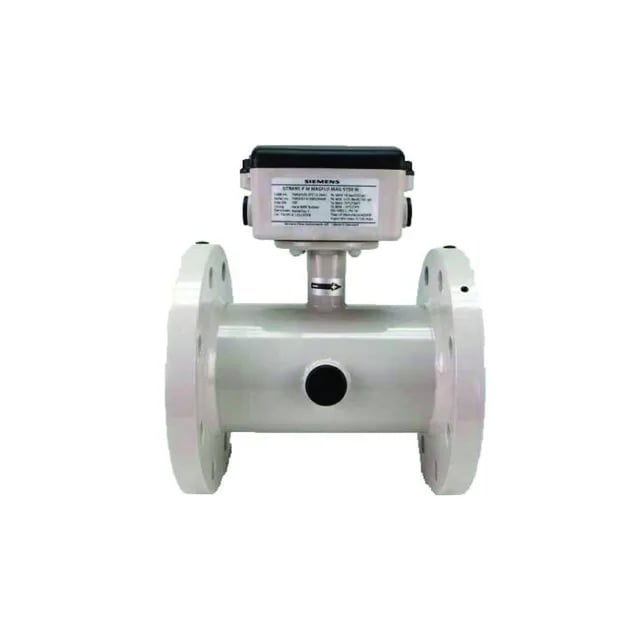

The 7ME6520-4PC12-2KA is an electromagnetic flow sensor from Siemens, designated Sensor SITRANS F M MAG 5100 W. Its DN 200 (8 inch) bore sets the pipeline sizing — this is the primary selection axis, and the matching flanges must match the plant piping class before any other parameter is evaluated.
IP68 rating — the buried and flooded installation case
Rated IP66/68, the meter is sealed against prolonged submersion — a critical distinction for below-ground sumps, lift stations, or any installation prone to flooding. IP66 handles high-pressure washdown on the exterior; IP68 extends that seal into periodic or sustained immersion, which is where most standard industrial flow meters drop out of specification. The EPDM liner rounds out the fluid-facing chemistry — EPDM is compatible with a wide range of water-based and mild chemical media but is not suited to petroleum derivatives, so the liner material must be confirmed against the process fluid before specifying this meter into a chemical line.
Flange rating and corrosion protection for industrial process duty
PN 16 pressure rating at the flanges covers the majority of municipal and light industrial water and wastewater pipelines. The carbon steel flanges with ASTM A 105 material and category C4 corrosion-resistant coating are designed for outdoor and mildly aggressive environments — the C4 classification per ISO 12944 means the coating system handles medium atmospheric exposure, useful for uncovered or partially exposed installations.
Integrated transmitter — power supply integration at site
The bundled MAG 5000 transmitter (polyamide housing) accepts 11-30 V DC and 11-24 V AC supply — the wide DC range accommodates 24 V battery-backed or solar installations common at remote pumping stations and wastewater treatment sites where AC is not readily available.
Sourcing posture — mature lifecycle, quoted to order
Lead time is 14 to 18 weeks, reflecting the build-to-order nature of this instrument class; plan procurement accordingly rather than treating it as a stocked line.
