Siemens 7ME6930-2BA20-1BA0
MPN7ME6930-2BA20-1BA0

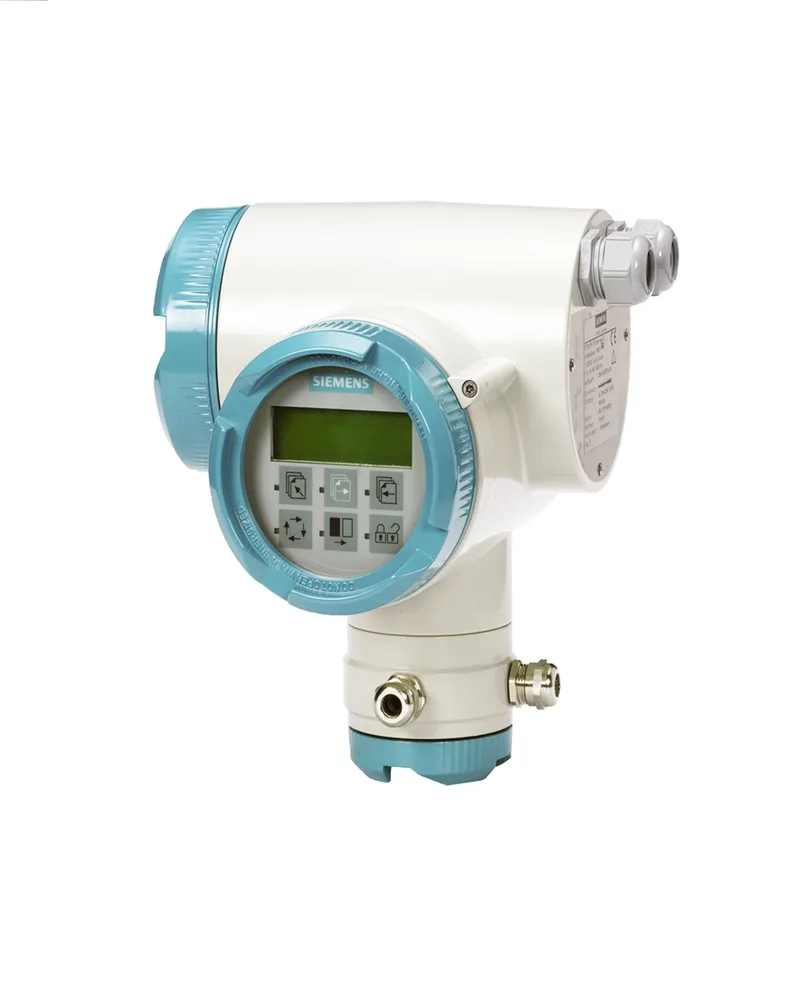

Magnetic Flow Meter Transmitter MAG6000 Industry
$1,295.02 – $2,122.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Weight | 3000 |
| Protocols | B = Hart |
| Empty_pipe | Detection of empty pipe (special cable required in remote mounted installation) |
| Frequency | Depend on sensor size |
| Product type | Magnetic Flow Meter Transmitter MAG6000 Industry |
| Digital_input | 11 … 30 V DC, Ri = 4.4 kO |
| Has_ex_approval | 0 = Standard sensor: FM Class I, Div 2, CSA Class I, Div 2 |
| Low_flow_cut_off | 0 … 9.9 % of maximum flow |
| Supply voltage | 90 |
| Cable_gland_entries | 0 = Metric |
| Measuring_principle | Electromagnetic with pulsed constant field |
| Has_galvanic_isolation | All inputs and outputs are galvanic isolated. |
| Electrode_input_impedance | > 1 x 1014 O |
| Mag_6000_i_mag_6000_i_ex_incl_sensor | ± 0.2 % ± 1 mm/s |
MPN
7ME6930-2BA20-1BA0
