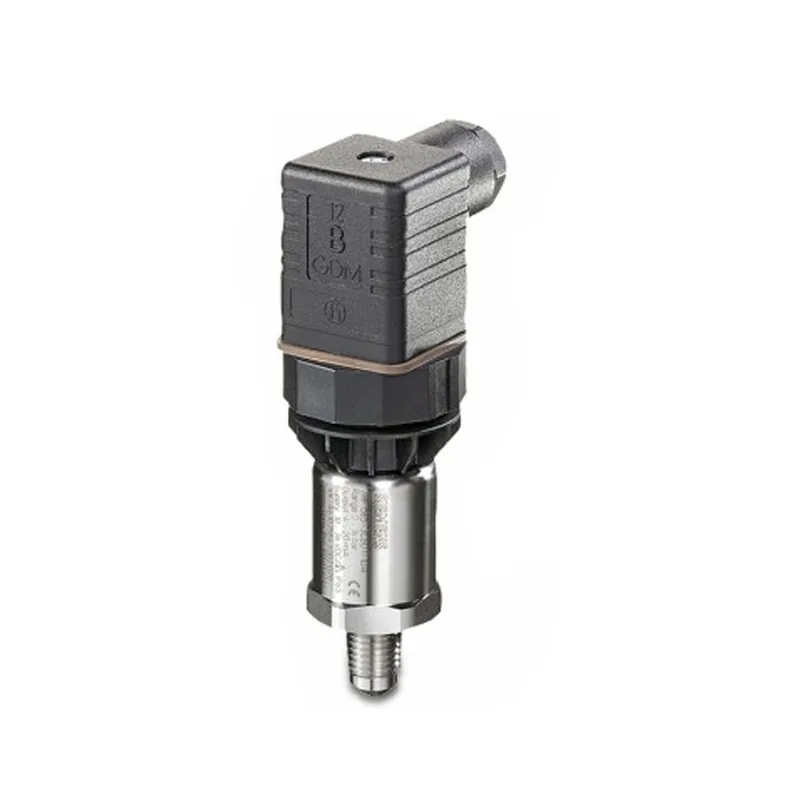

Siemens 7MF1565-3BD00-1GA1
MPN7MF1565-3BD00-1GA1
SITRANS P200 Transmitters
$163.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | SITRANS P200 Transmitters |
| Parameter | Value |
|---|---|
| Non-linearity | 0,25 percent (typically) |
| Parameter | Value |
|---|---|
| Electrical connection | plug to DIN EN 175301-803-A, threat for packed gland M16 (with connector) |
| Parameter | Value |
|---|---|
| Process connection | G1/4" male thread to EN837-1 (1/4"-BSP male) X |
| Wetted parts material | ceramics, stainless steel plus sealing material; |
| Non-wetted parts material | stainless steel X |
| Parameter | Value |
|---|---|
| Weight | 0.2 Kg |
| Measuring range for gauge | 0 to 4 bar, Overload- pressure 10 bar Output signal: 4 to 20 mA two-wire connection, |
| Sealing material between sensor and housing | Viton (FPM, Standard) |
MPN
7MF1565-3BD00-1GA1
