Siemens 7MF1567-3CB00-6AA1 — Absolute Pressure Transmitters

Siemens 7MF1567-3CB00-6AA1

MPN7MF1567-3CB00-6AA1

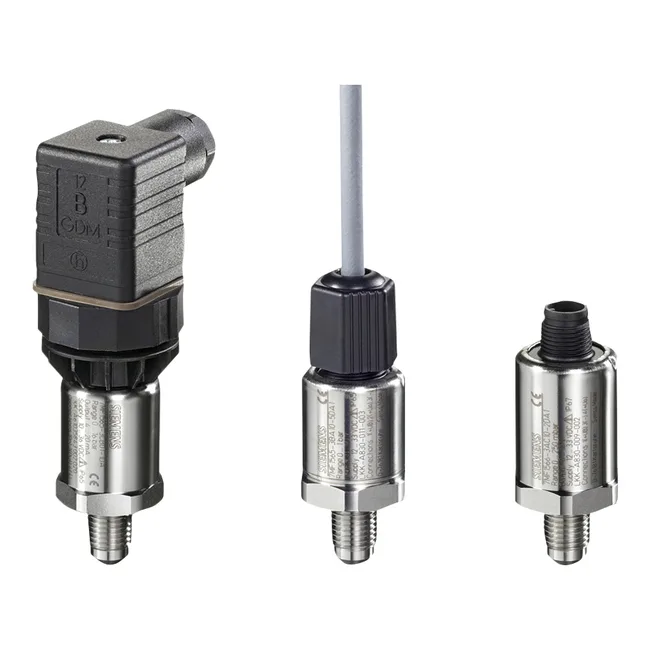

SITRANS P220 Transmitters for pressure (0-16 bar)

$142.00Ref. price · indicative, final on quote
Siemens 7MF1567-3CB00-6AA1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

7MF1567-3CB00-6AA1 — Measurement
ParameterValue
Measuring range (gauge)0 to 16 bar
Overload pressure40 bar
Non-linearity0,25 Percent (typically)
7MF1567-3CB00-6AA1 — Electrical
ParameterValue
Output signal4 to 20 mA two-wire connection
Electrical connectionplug to DIN EN 175301-803-A, threat for packed gland PG11 (with connector)
7MF1567-3CB00-6AA1 — Process & Wetted Materials
ParameterValue
Process connectionG1/2" male to EN 837-1 (1/2" BSP male) (standard for metric pressure ranges mbar, bar)
Wetted parts materialstainless steel
Non-wetted parts materialstainless steel
7MF1567-3CB00-6AA1 — Other specifications
ParameterValue
Product descriptionSITRANS P220 Transmitters for pressure and absolute pressure fully welded version for high-pressure and refrigerant applications
MPN
7MF1567-3CB00-6AA1
