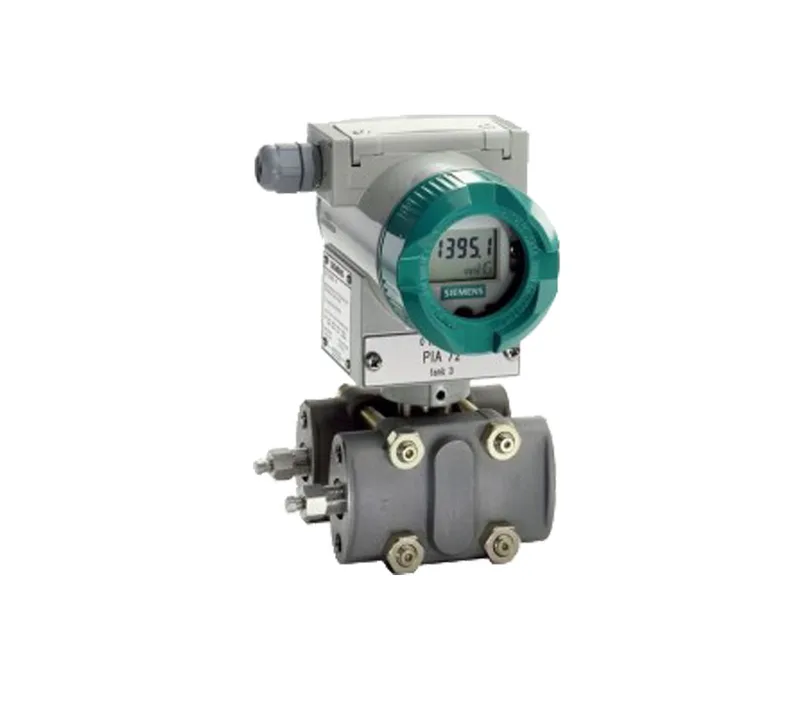

Siemens 7MF4233-1FA00-2AB6-ZA02
MPN7MF4233-1FA00-2AB6-ZA02
Absolute Pressure Transmitter
$760.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Span | 43 to 1300 mbar a (0.62 to 18.9 psi a) |
| Parameter | Value |
|---|---|
| Electrical connection / cable entry | Screwed gland M20 x 1.5 |
| Display / indicator | With visible digital indicator, setting: mA |
| Parameter | Value |
|---|---|
| Process connection | Connection Shank G1/2A to EN 837-1 |
| Non-wetted parts material | Housing Die-Cast Aluminium |
| Measuring cell fill fluid | Silicone Oil |
| Measuring cell cleaning | Standard |
| Parameter | Value |
|---|---|
| Mounting bracket material | Stainless Steel |
| Weight | 1.5 Kg min. |
| Parameter | Value |
|---|---|
| Product type | Absolute Pressure Transmitter |
| Version | International version, English label inscriptions and documentation in 5 languages on CD |
| Parameter | Value |
|---|---|
| Explosion protection | Without |
| Parameter | Value |
|---|---|
| Seal diaphragm | Stainless Steel |
| Parts of measuring cell | Stainless Steel |
MPN
7MF4233-1FA00-2AB6-ZA02
