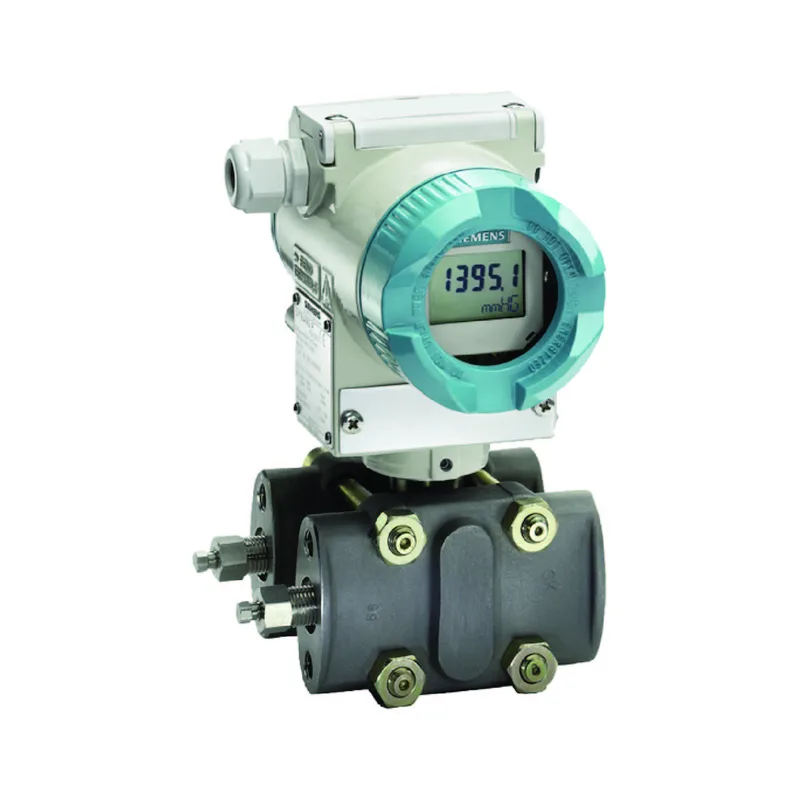

Siemens 7MF4433-1DA02-2AB1-Z
MPN7MF4433-1DA02-2AB1-Z
Transmitter for Differential Pressure
$1,200.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Transmitters for differential pressure and flow |
| Series model = 7MF443 | Transmitters for differential pressure and flow |
| Process connection = 0 | Mounting thread M10 to DIN 19213 |
| Electrical connection (cable entry = b) | Screwed gland M20 x 1.5 |
| Shipping weight | 6.0 Kg |
| Electronics housing | Die-cast aluminum |
| Wetted parts materials = | Seal diaphragm : Stainless steelParts of measuring cell: Stainless steel |
| Non-wetted parts materials = 2 | -Process flange screws : Stainless steelElectronics housing: Die-cast aluminum |
| Span = d | Measuring cell filling |
| Display = 1 | Without (digital indicator hidden, setting: mA) |
| Version = 2 | International version, English label inscriptions and documentation in 5 languages on CD |
| Manufacturer | Siemens |
All specifications+7 ▾
| Parameter | Value |
|---|---|
| Seal diaphragm | Stainless steel |
| Estimated lead time | 1 - 10 Working days. |
| Process flange screws | Stainless steel |
| Measuring cell cleaning | Standard |
| Parts of measuring cell | Stainless steel |
| Explosion protection = | Without |
| Measuring cell filling = 1 | -Description : Silicone oilMeasuring cell cleaning : Standard |
MPN
7MF4433-1DA02-2AB1-Z
