Siemens 7ML1106-1AA20-0A
MPN7ML1106-1AA20-0A

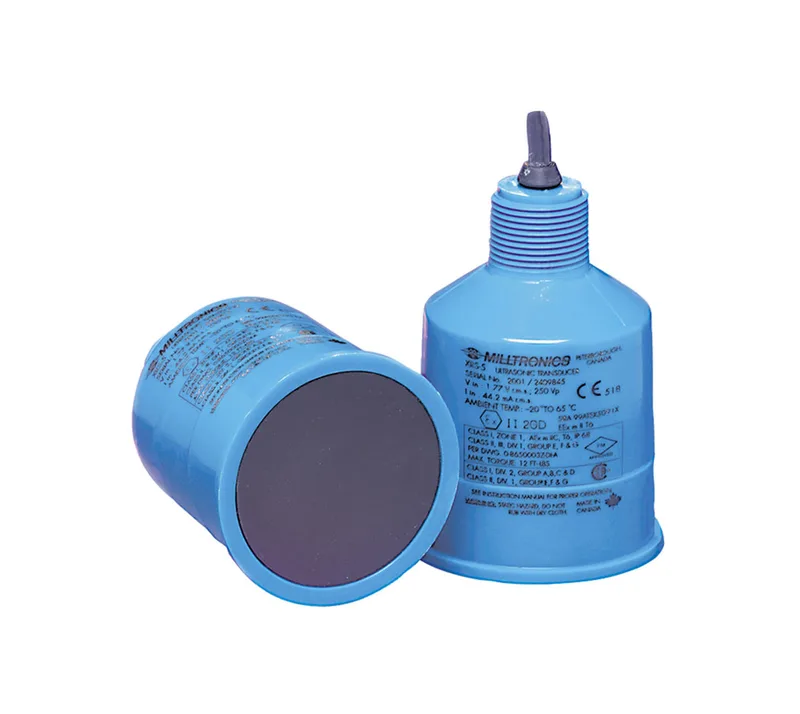

XRS-5 Transducer
$552.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product type | EchoMax XRS-5 Transducer |
Process Interface
| Parameter | Value |
|---|---|
| Process connection | 1 = 1" NPT [(Taper), ANSI/ASME B1.20.1] |
Mechanical
| Parameter | Value |
|---|---|
| Cable length | A = 5 m (16.40 ft) |
Approvals
| Parameter | Value |
|---|---|
| Approvals | 2 = CE, RCM, KCC, CSA Class I, Div. 2, Groups A,B,C,D, Class II, Div. 1 Groups E,F,G FM Class I, Zone 1, AEx m IIC, T6 Class II, III, Div. 1, Groups E,F,G T6 ATEX II 2GD / IECEx / INMETRO Ex mb IIC T6 Gb, Ex tb IIIC T85 °C Db |
Environmental
| Parameter | Value |
|---|---|
| Ambient Temperature | -20 ... +65 °C (-4 ... +149 ° F) |
Other specifications
| Parameter | Value |
|---|---|
| Facing | A = Standard (CSM rubber) |
| 7ML1106 | With a beam angle of 10°, the XRS-5 provides reliable, continuous level monitoring of liquids and slurries in narrow lift stations/wet wells, flumes, weirs and filter beds. Measuring range: min. 0.3 m (1 ft), max. 8 m (26 ft). |
| Output frequency | 44 kHz |
| Temperature error | Compensated by integral temperature sensor |
| Measuring principle | Ultrasonic transducer |
| Input measuring range | 0.3 ... 8 m (1 ... 26 ft), dependent on application |
MPN
7ML1106-1AA20-0A
