Siemens 7ML5440-0BB00-0AQ2
MPN7ML5440-0BB00-0AQ2

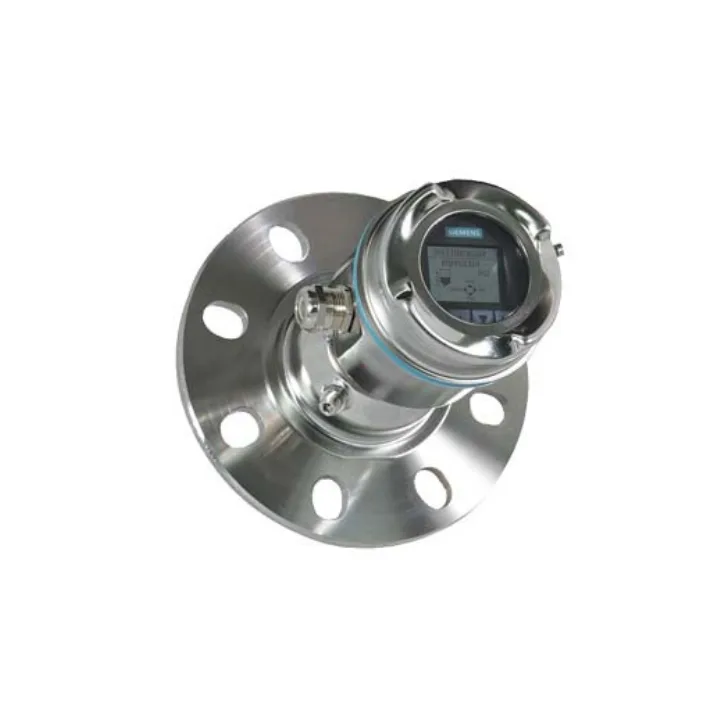

SITRANS LR560 Radar Level Transmitter
$3,517.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Measurement
| Parameter | Value |
|---|---|
| Measuring range & process temperature | 40m (131 ft) max range, -40 C degrees to +100 C degrees |
Process Interface
| Parameter | Value |
|---|---|
| Process connection | Universal flat-faced flange fits ANSI/DIN/JIS flanges : 4" / 100 mm, 304 stainless steel |
| Process pressure rating | 0.5 bar g (7.5 psi g) maximum |
Communication & I/O
| Parameter | Value |
|---|---|
| Output / communication signal | 4 to 20 mA, HART Local |
Other specifications
| Parameter | Value |
|---|---|
| Label | Sitrans LR560 |
| Display interface | With LDI (local display interface) |
| Enclosure (with cable inlet) | Stainless Steel, 1 X M20 x 1.5 (plastic gland included) |
| SITRANS LR560 radar level transmitter with flush lens antenna | continuous, non-contact, 100 m (328 ft) range, for general solids applications. |
MPN
7ML5440-0BB00-0AQ2
