Siemens 7SJ8041-5EB00-1FQ0
MPN7SJ8041-5EB00-1FQ0

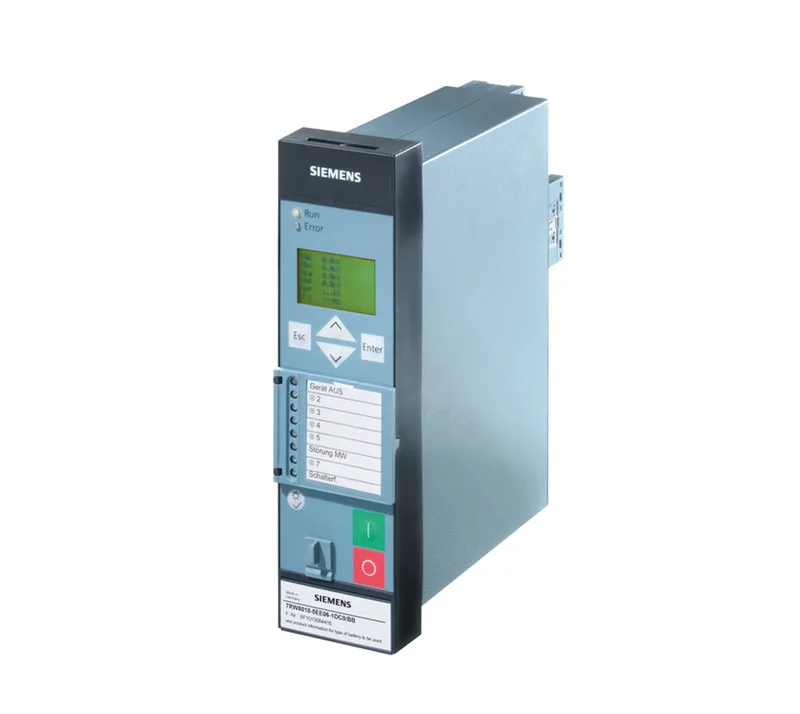

SIPROTEC Compact 7SJ80 Multifunction Protection Relay
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Product type | SIPROTEC Compact 7SJ80 Multifunction Protection Relay |
| Unit version | E = Flush-mounting housing, screw-type terminal |
| Rated auxiliary voltage | 5 = 60 V / 110 V / 125 V / 220 V DC, 115 V, 230 V AC |
| Measuring (fault recording) | 1 = With fault recording |
| Scope of functions of the unit | B = Paralleling function for 2 synchronizing points without balancing commands, 1½-channel, synchro-check in 2nd channel |
| Housing, binary inputs and outputs | 4 = Housing 1/6 19’’, 4 x I,3x V, 7 BI, 8 BO (2 changeover/Form C), 1 live status contact |
| Measuring inputs, default settings | 1 = Iph = 1 A / 5 A, Ie =1A/5A |
| Port b (at bottom of device, rear) | 0 = No port |
| Port a (at bottom of device, in front) | 0 = No port |
| Region-specific default and language settings | B = Region World, IEC/ANSI, language English (language selectable), standard front |
MPN
7SJ8041-5EB00-1FQ0
