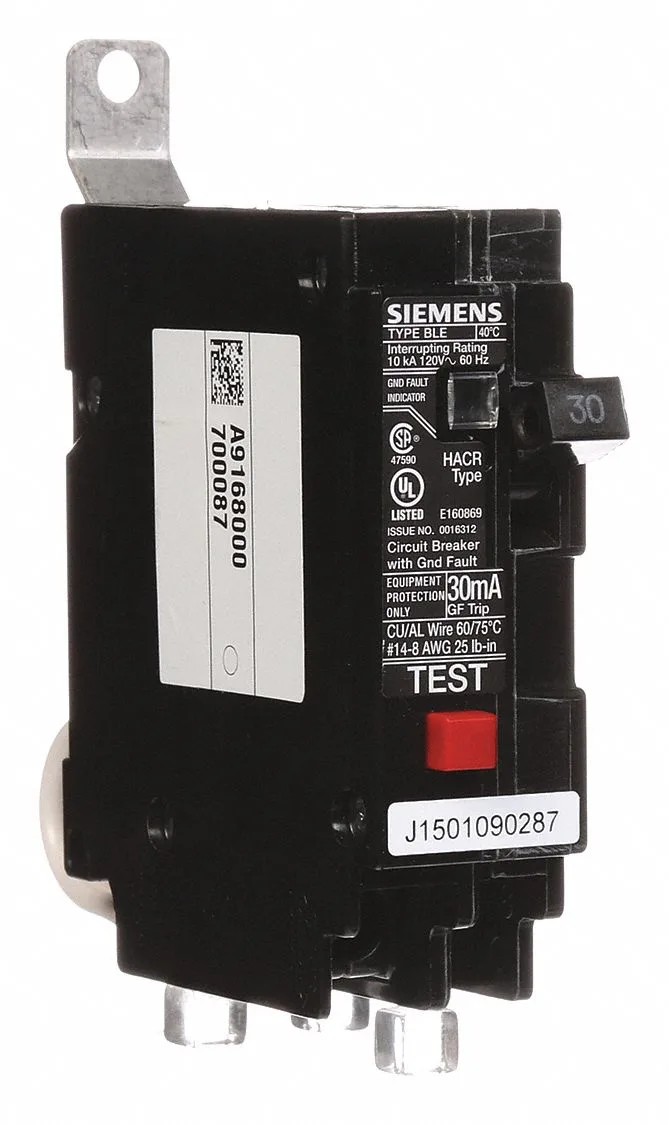

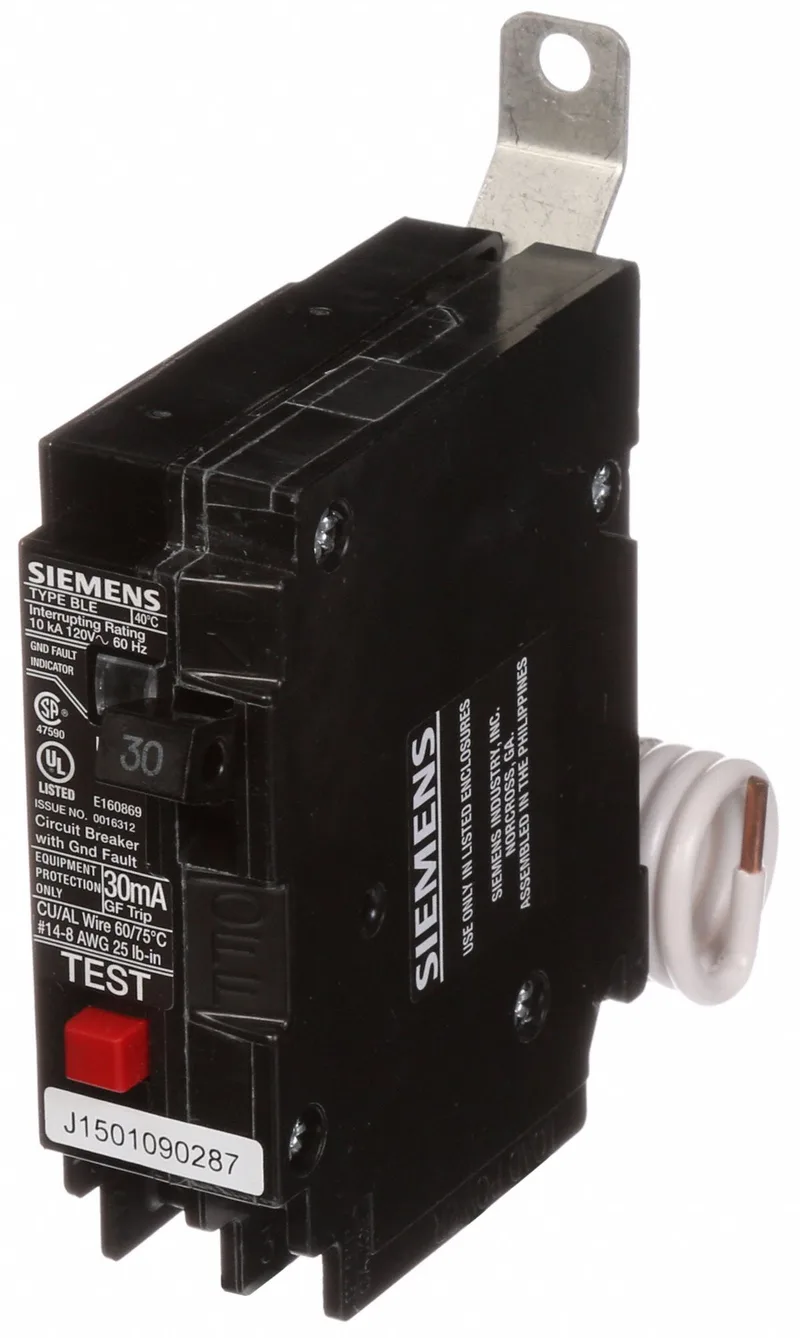

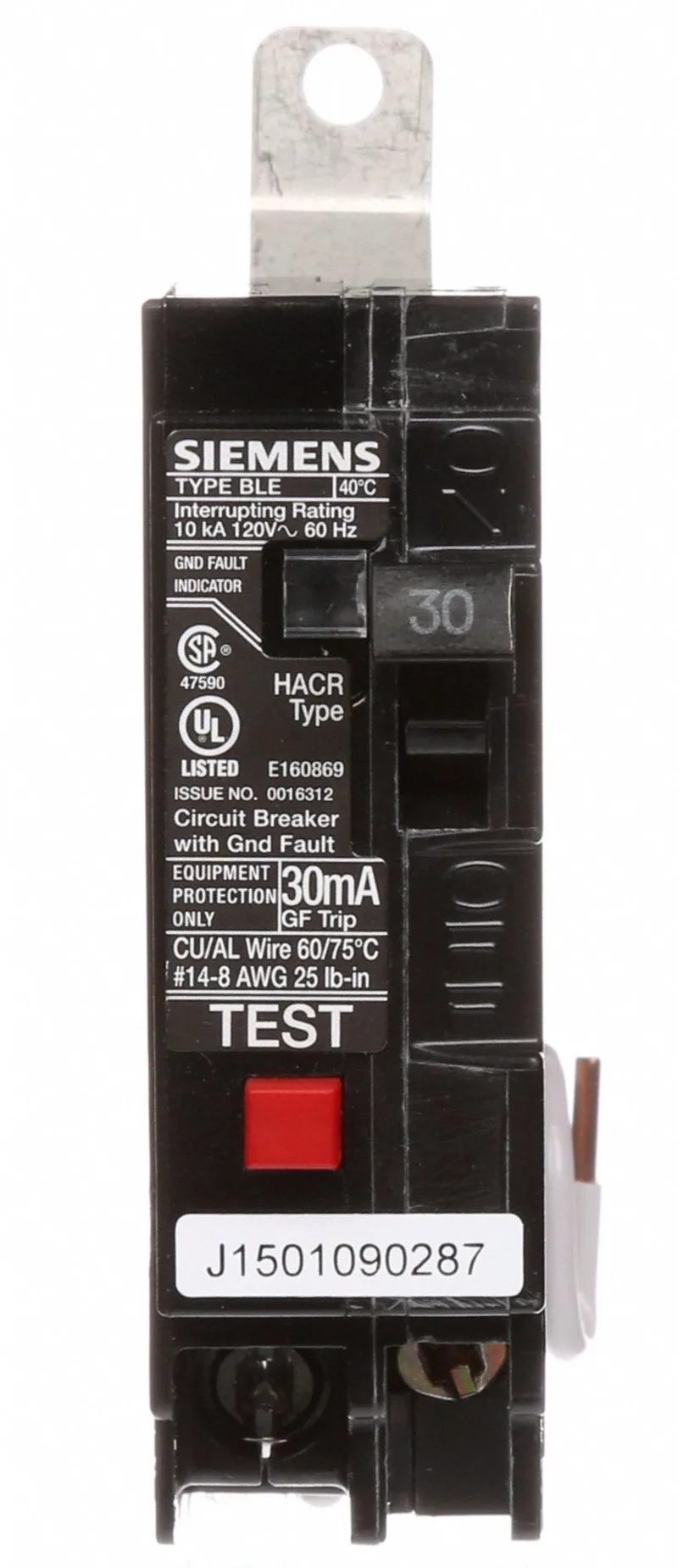

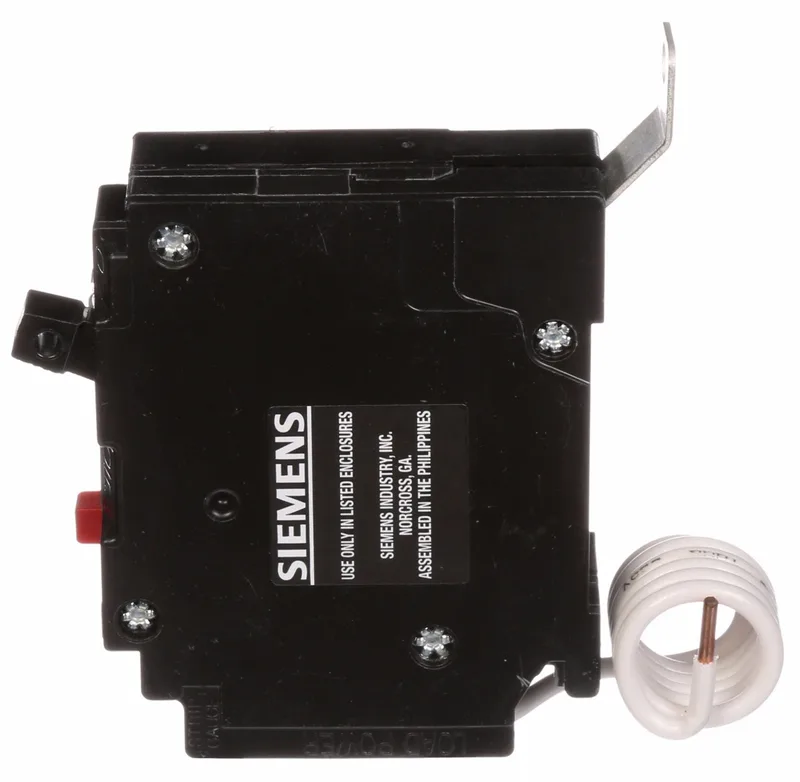

Siemens BE130
MPNBE130
BREAKER 30A 1P 120V 10K BLE GFI 30MA|BREAKER 30A 1P 120V 10K BLE GFI 30MA
$426.43 – $718.18Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BLE |
| Circuit breaker type | Ground Fault Equipment Protection |
| Compatible panelboard (Load center series) | P1 |
| AC voltage rating | 120V AC |
| DC voltage rating | Not Rated |
| Poles | 1 |
| Phases | Single |
| Circuit breaker mounting style | Bolt On |
| Max. wire size | 6 AWG |
| Min. wire size | 12 AWG (Al); 14 AWG (Cu) |
| Terminal connection | Lug |
| Depth | 5.6 in |
All specifications
| Parameter | Value |
|---|---|
| Width | 3.6 in |
| Frame size | 60A/BLE |
| Standards | CSA Certified; HACR Rated; NOM Certified; UL Listed |
| Amps | 30 A |
| Brand | SIEMENS |
| Length | 1.4 in |
| For use with | Siemens P1 Panelboards |
| Max. AIR rating | 10kA at 120V AC |
| Circuit breaker actuator | Toggle |
MPN
BE130
