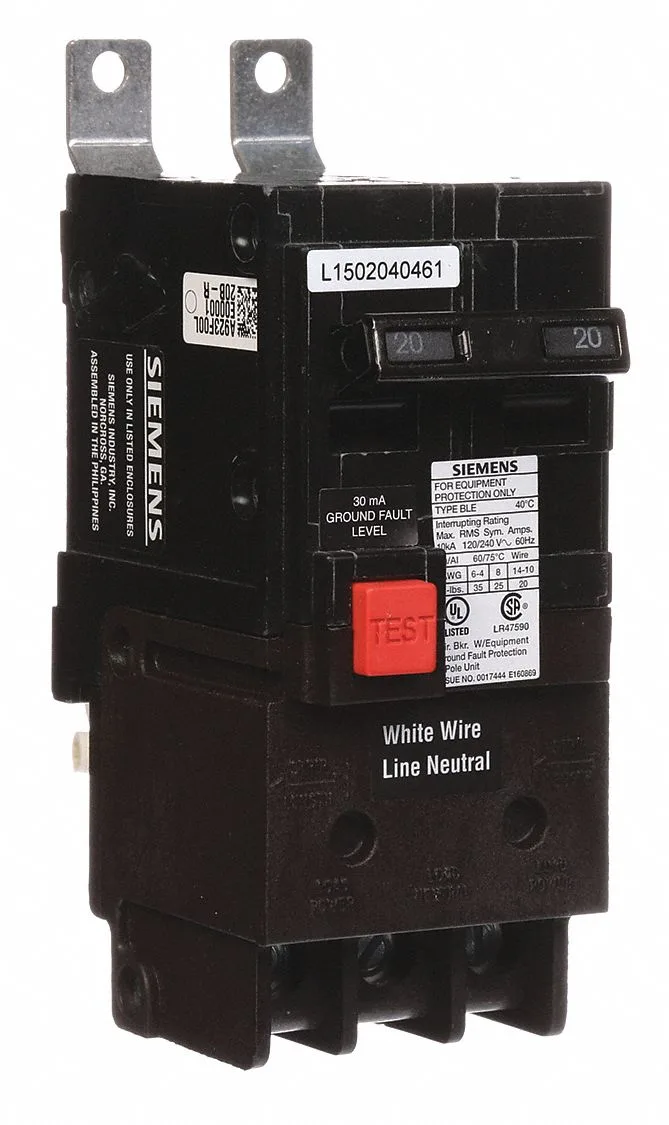

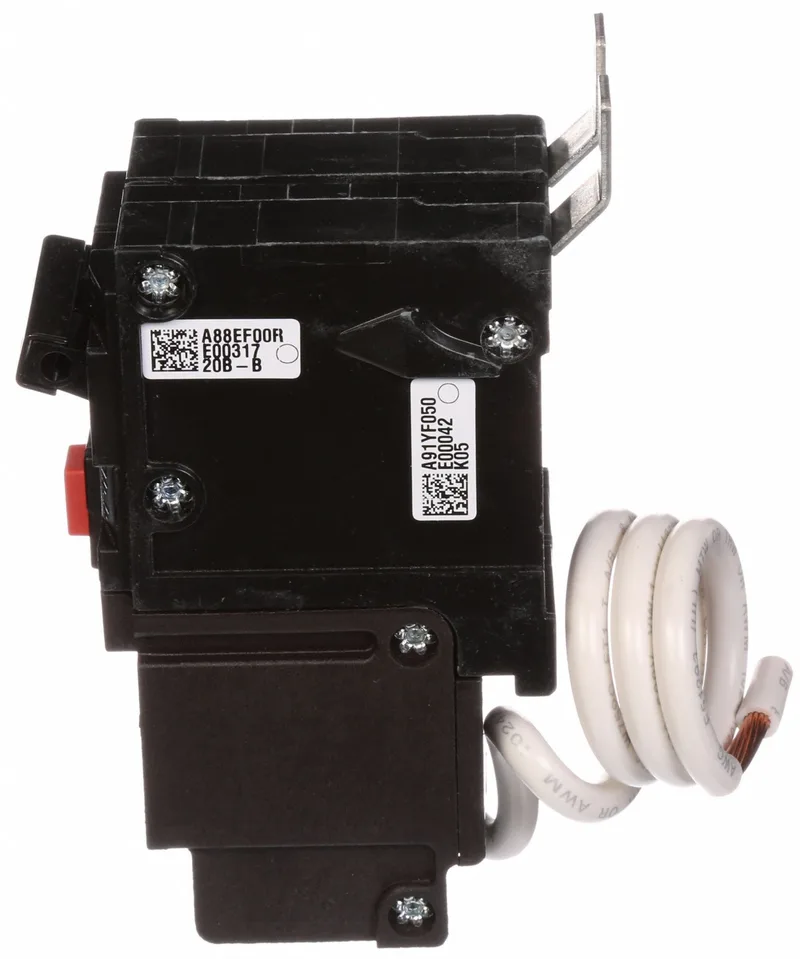

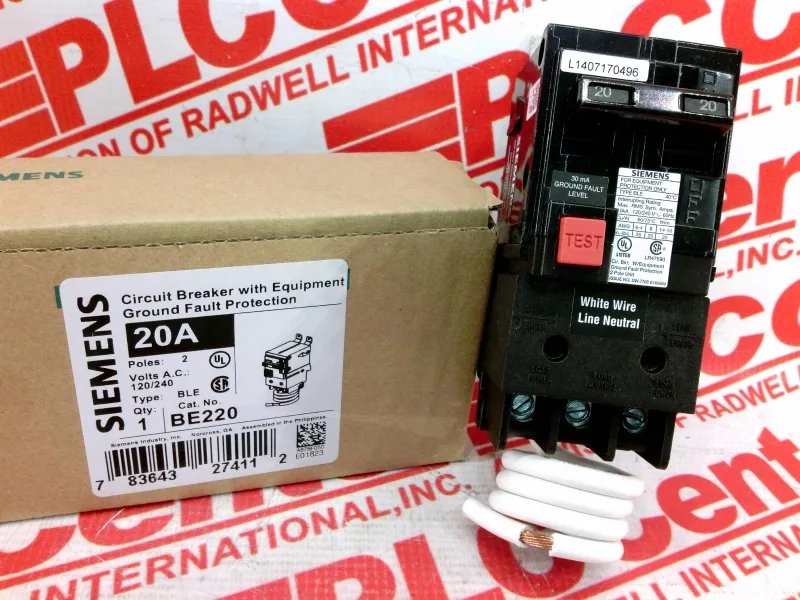

Siemens BE220
MPNBE220
Breaker, Bolt On, 20A, 2P, 120/240V, BLE Type, GFIEP|Breaker, Bolt On, 20 Amp, 2-Pole, 120/240 Volt AC, BLE Type, 10 kAIC, Ground Fault, Equipment Protection
$769.06 – $840.36Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BLE |
| Circuit breaker type | Ground Fault Equipment Protection |
| Compatible panelboard (Load center series) | P1 |
| AC voltage rating | 120/240V AC |
| DC voltage rating | Not Rated |
| Poles | 2 |
| Phases | Single |
| Circuit breaker mounting style | Bolt On |
| Max. wire size | 10 AWG |
| Min. wire size | 12 AWG (Al); 14 AWG (Cu) |
| Terminal connection | Lug |
| Depth | 12.6 in |
All specifications
| Parameter | Value |
|---|---|
| Width | 7.1 in |
| Frame size | 60A/BLE |
| Standards | CSA Certified; HACR Rated; NOM Certified; UL Listed |
| Amps | 20 A |
| Brand | SIEMENS |
| Length | 7.9 in |
| For use with | Siemens P1 Panelboards |
| Max. AIR rating | 10kA at 120/240V AC |
| Circuit breaker actuator | Toggle |
MPN
BE220
