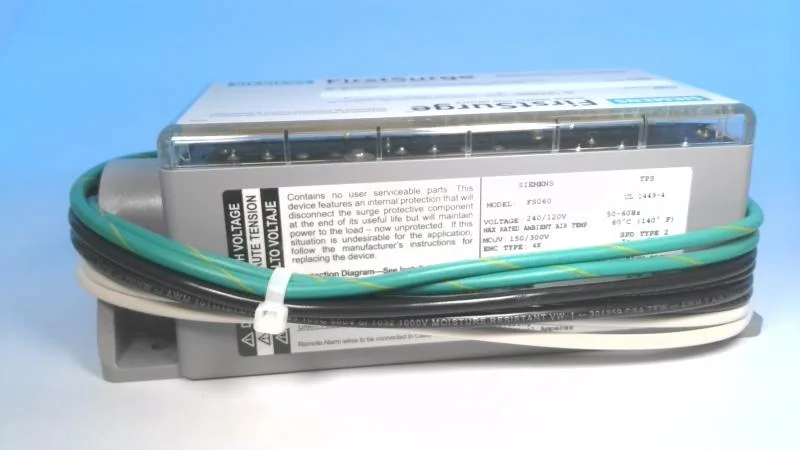

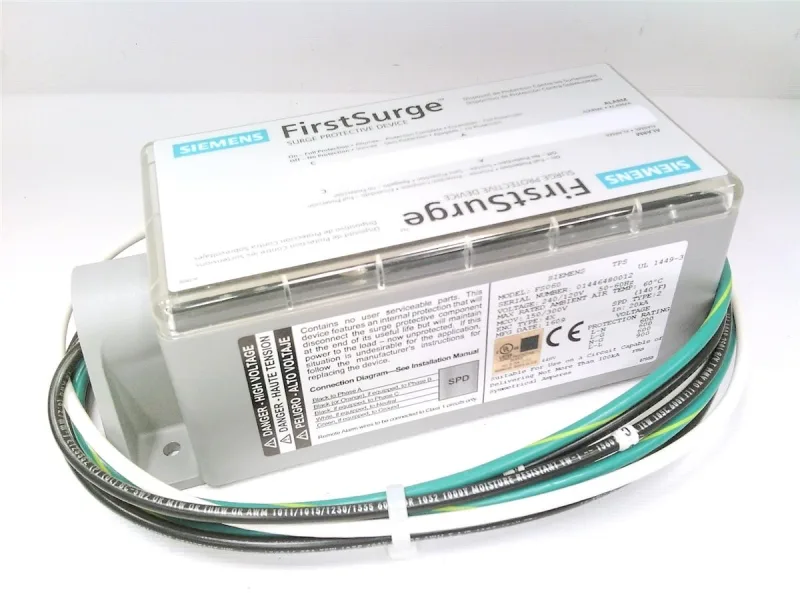

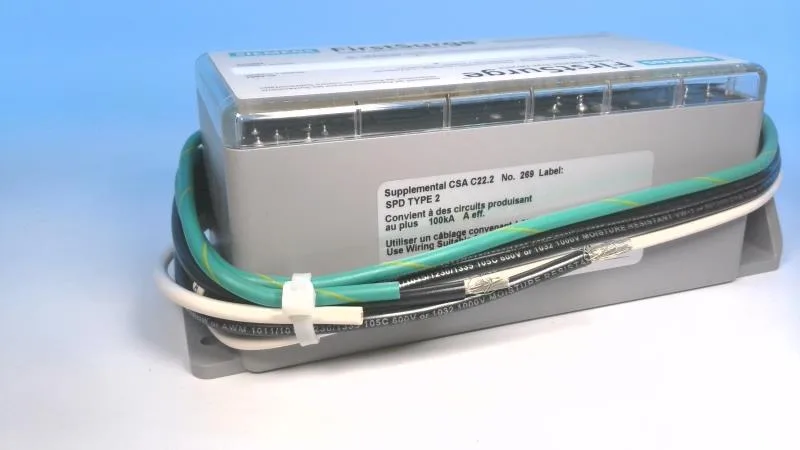

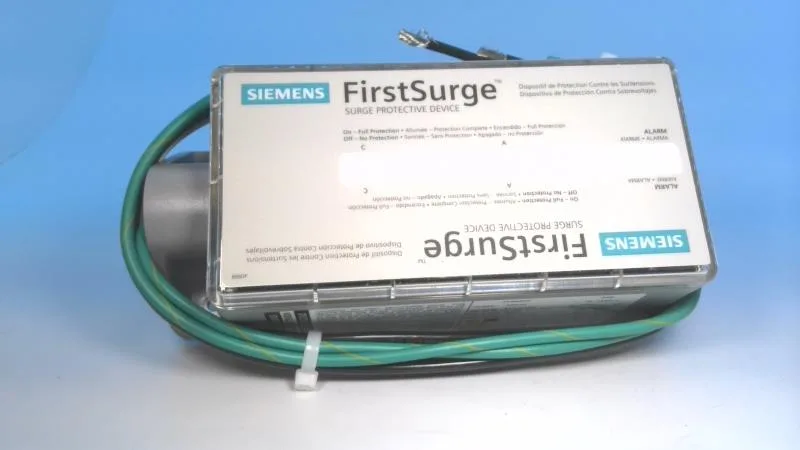

Siemens FS060
MPNFS060
FirstSurge, Type 2 Surge Protective Device, Rated 120/240V Split Phase (Up to 400A)|FirstSurge, Type 2 Surge Protective Device, Rated 120/240 Volt Split Phase (Up to 400 Amp) at 50/60Hz,
$220.00 – $341.89Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| UL SPD type | Type 2 |
| Voltage | 120/240V AC |
| Voltage protection rating | 600V (L-G, L-N, N-G); 900V (L-L) |
| Max. continuing operating voltage | 150 V AC |
| Lightning impulse current | 20 kA |
| Nominal discharge current | 20 kA |
| Max. surge current per mode | 30kA (L-G; L-N); N-G |
| Max. surge current per phase | 60 kA |
| Short circuit current rating | 100kA |
| Poles | 2 |
| Phases | Single |
| IP rating | 56 |
All specifications
| Parameter | Value |
|---|---|
| Enclosure material | Polycarbonate |
| Enclosure NEMA rating | 4X |
| Mounting style | Chase Nipple |
| Wire gauge | 10 AWG |
| Number of wires | 3 Wires + Ground |
| System connection | Parallel |
| Max. operating temp. | 185 °F |
| Min. operating temp. | -40°F |
| Color | Gray |
| Depth | 3 in |
| Width | 3.56 in |
| Basic material | Nonmetallic |
| Standards | ANSI/IEEE , UL/cUL 1449 Listed, Type 2 |
| Brand | SIEMENS |
| Length | 8.28 in |
| Modular | No |
| Includes | Ground Reference Monitoring |
| Filtering | No |
| Status indicator | Audible Alarm; LED Light |
| Chase nipple size | 3/4 in |
| Modes of protection | L-G; L-L; L-N; N-G |
MPN
FS060
