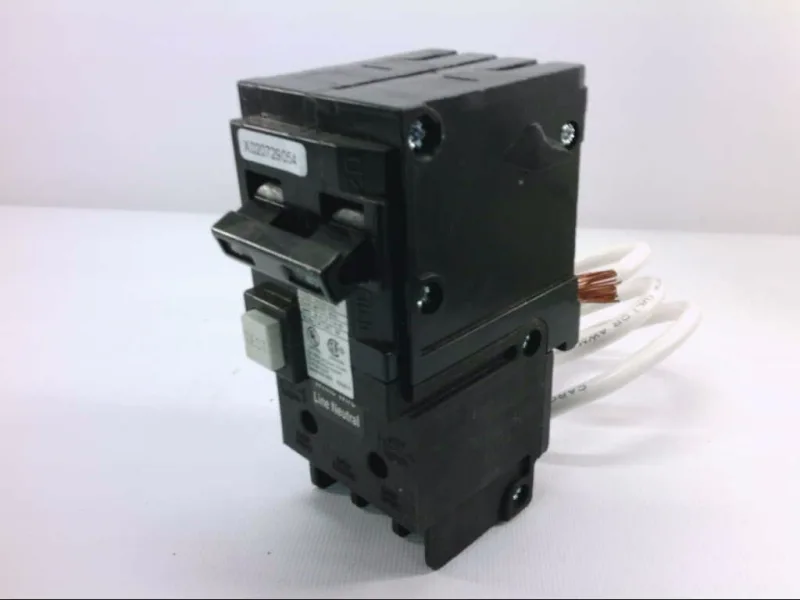

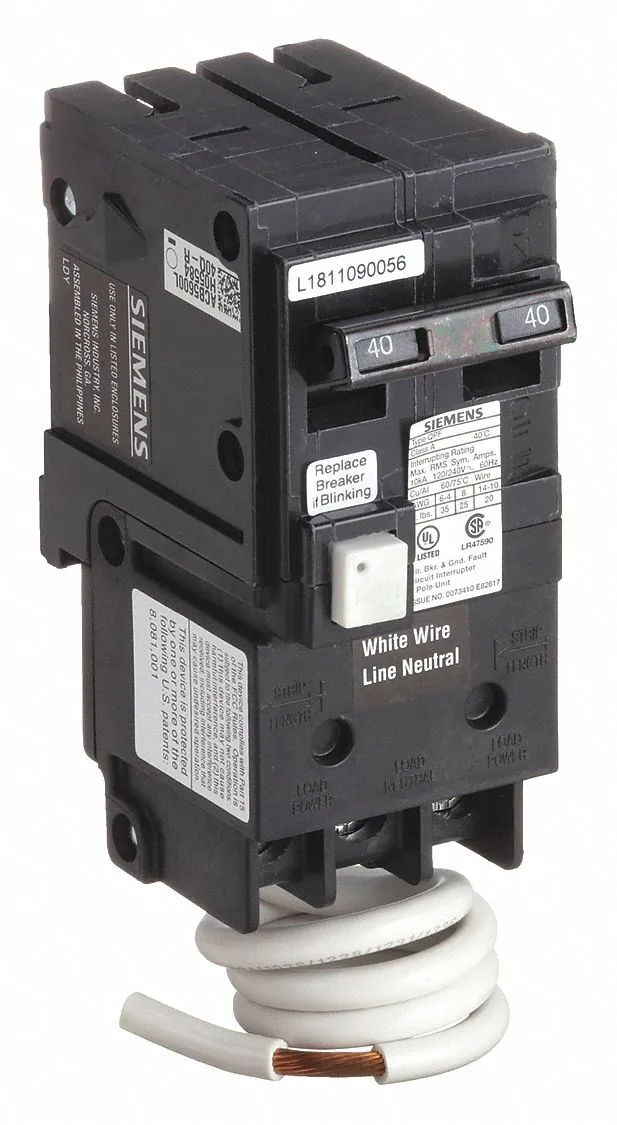

Siemens QF240A
MPNQF240A
BRKR QPF GFCI 5mA 2P 240V 40A 10KA|BRKR 40A 2P 120/240V 10K QPFB GFCI 5MA
$181.31 – $189.65Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | QF |
| Circuit breaker type | Ground Fault Circuit Interrupter (Class A - 5mA) |
| AC voltage rating | 120/240V AC |
| DC voltage rating | Not Rated |
| Poles | 2 |
| Phases | Single |
| Circuit breaker mounting style | Plug In |
| Max. wire size | 6 AWG |
| Min. wire size | 8 AWG |
| Terminal connection | Lug |
| Depth | 2.38 in |
| Width | 2 in |
All specifications
| Parameter | Value |
|---|---|
| Frame size | 225A/QF |
| Standards | CSA Certified; UL Listed |
| Amps | 40 A |
| Brand | SIEMENS |
| Length | 2.88 in |
| For use with | Siemens Load Centers |
| Max. AIR rating | 10kA at 120V AC |
| Circuit breaker actuator | Toggle |
MPN
QF240A
