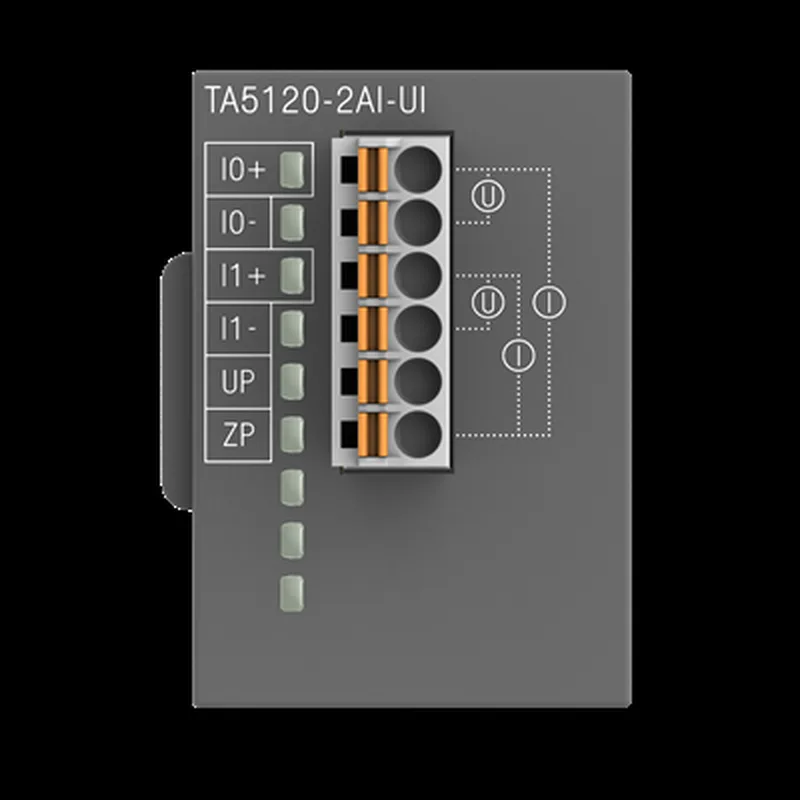

The 1SAP187100R0001: Analog input option board for the ABB TA5120 series distributed automation PLCs, providing two configurable analog inputs for voltage or current signals with 12-bit resolution. Termination uses spring-cage connectors—no screwdriver torque required, consistent with DIN-rail wiring practice. Housing is IP20, suitable for enclosure-mount applications.
ABB 1SAP187100R0001 Analog Input Board, 2 AI, 12-bit
MPN1SAP187100R0001
Active
ABB TA5120 Series, Analog Input Board, 1SAP187100R0001, 2 Analog Inputs Voltage/Current, 12-Bit Resolution, Spring Terminals Included.
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| CN8 | 85389091 |
| Function | 2 AI: U, I. 12 Bit. Spring terminals included |
| Resolution | Analog Input 12 bit |
| Input signal | U, I |
| Analog inputs | 2 |
| IP rating | Housing IP20 |
| Certificates and declarations (SCIP) | 0e7ffae6-e0ab-45f8-ba0b-ccfa0e028fc8 Germany |
| Number of analog configurable i (Os) | 0 |
| Additional information (Product main type) | TA5120 |
| Certificates and declarations (REACH date) | 20241206 |
| Certificates and declarations (REACH information) | True - contains substances > 0.1 mass percentage |
Product details
Frequently asked questions
What compliance documentation does ABB provide for this board?
RoHS compliance per EU Directive 2011/65/EU, REACH declaration indicating substances >0.1% mass, and SCIP reference are available.
What is the HS code for 1SAP187100R0001?
CN8 code 85389091 applies for customs classification.
