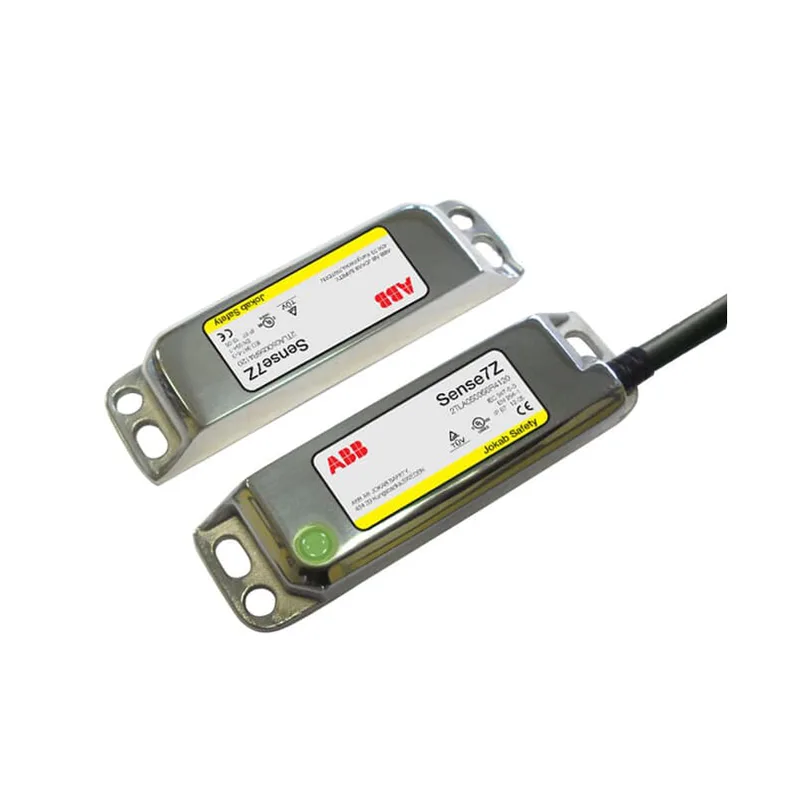

The ABB 2TLA050056R2120 is a factory-terminated PVC 8-core cable, 6 mm O.D., purpose-built for the ABB Sense7Z M12 sensor family. The 316 stainless steel construction and IP69K protection class mean the cable assembly withstands high-pressure, high-temperature washdown cycles — standard for food-and-beverage, pharmaceutical, and heavy-sanitation lines where a standard M12 cordset would fail from ingress or corrosion.
IP69K resists steam-jet cleaning. For a sensor cable, that rating governs the connector seal and jacket integrity. The 316 stainless steel body provides corrosion resistance in caustic and acidic wash zones. The PVC 8-core cable, 6 mm O.D., carries the sensor's power and signal lines. The minimum switched current is rated at 10 VDC 1 mA, which means it reliably switches dry-contact or low-power solid-state outputs without contact wetting issues — relevant if the Sense7Z is driving a PLC input directly. Dimensions are 1.4 cm x 8.8 cm x 5 cm (the connector body and cable entry). The two M4 mounting bolts with a tightening torque of 1.0 Nm secure the sensor head — over-torquing can crack the stainless housing or strip the threads.
Because this is a factory-terminated assembly specific to the Sense7Z family, there is no generic pin-compatible alternative that carries the same IP69K and 316 SS rating. A standard M12 cordset would drop the ingress rating and corrosion resistance, creating a reliability gap in washdown zones.
