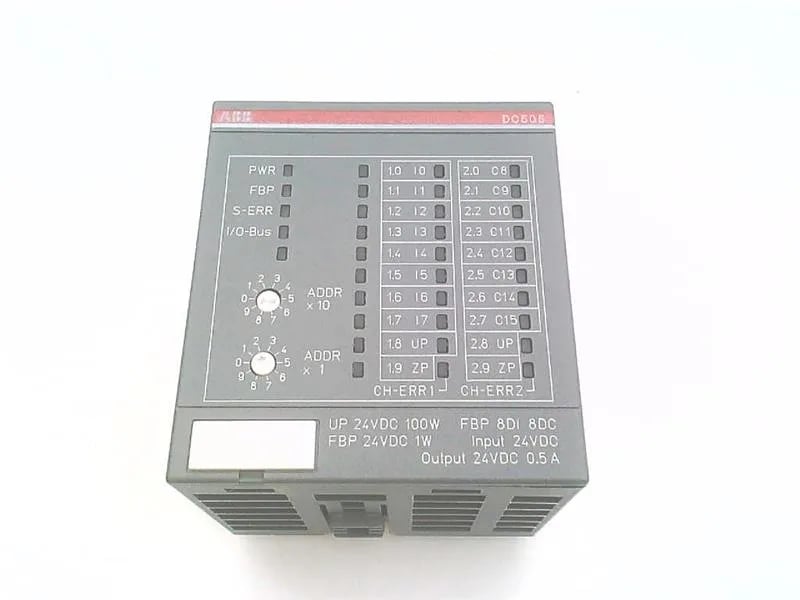

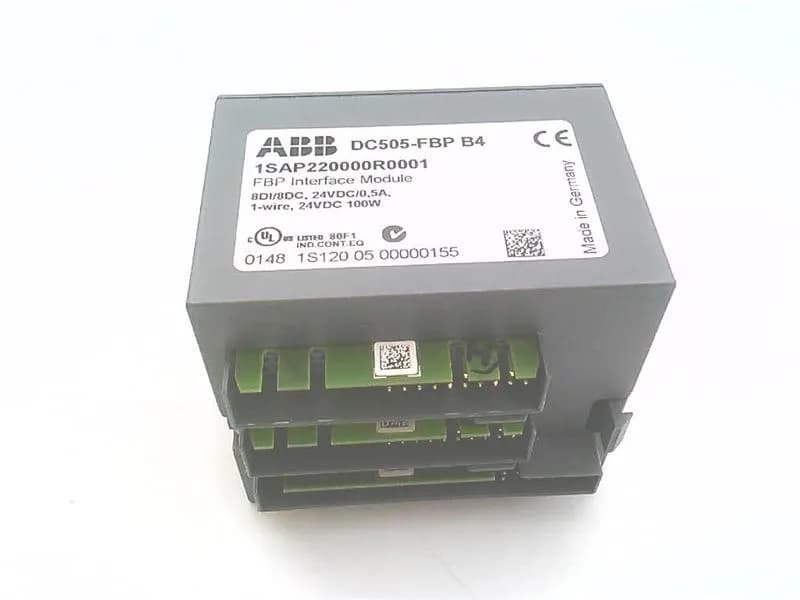

The ABB 1SAP220000R0001 is a DC505-FBP bus module for the AC500 PLC family, packing eight 24 V DC inputs and eight 0.5 A DC outputs onto a single FieldBusPlug slice. The FieldBusPlug interface sits on the left side, linking the module into the system via a standard FBP cable; the I/O bus on the right handles backplane communication with the CPU. Rated for operation from 0 to 60 °C, IP20, and mounts on a TH35-15 DIN rail. Vertical installation is possible with derating.
Mounting and wiring points
Snaps onto a TH35-15 DIN rail per IEC 60715. If you're mounting it vertically (non-standard), derate the ambient temperature and output loading — the datasheet curve covers that. The 8 digital outputs are rated 0.5 A each at 24 V DC. No specific output type is stated — assume standard sourcing or sinking; confirm polarity from the pinout. Inputs are 24 V DC, 8 channels. Maximum altitude 2000 m, operating temperature 0 to +60 °C. Keep it clean and dry; IP20 means no washdown tolerance.
RoHS compliant per EU Directive 2002/95/EC. No UL or REACH listing is provided in the available documentation. The programming software is AC500 Control Builder PS501-PROG. GSD file for Profibus is available under order code 1SAJ924091R0104.
