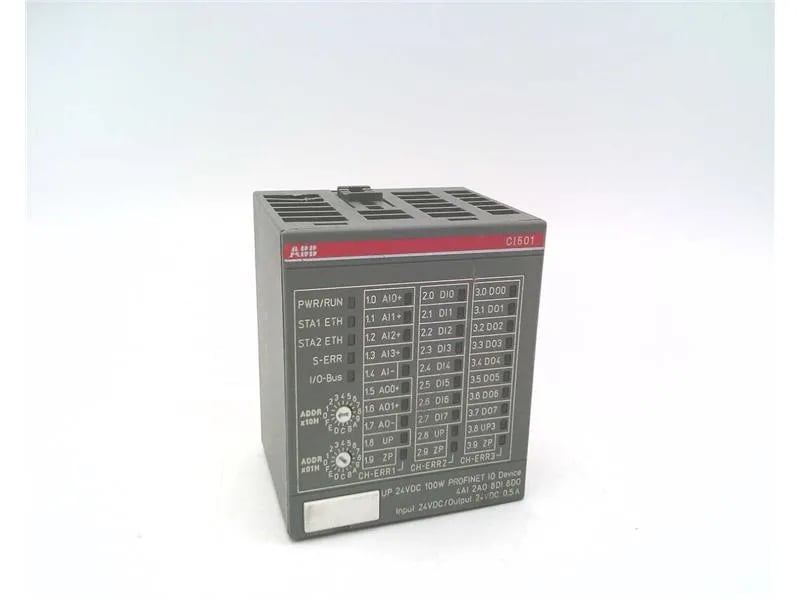

ABB CI501 1SAP220600R0001, PROFINET IO RT device with 4 AI / 2 AO / 8 DI 24VDC / 8 DO 0.5A, IP20, 20.4-28.8 V DC supply.
| Parameter | Value |
|---|---|
| Input voltage type | DC |
| Output voltage type | DC |
| Additional information (Product main type) | CI501 |
| Supply voltage | 20.4 ... 28.8 V DC |
| Input voltage | 24 V DC |
| Output voltage maximum | 20.4 ... 28.8 V |
| Input current | 5 mA |
| Output current | 0.5 A |
| IP rating | IP20 |
| Number of hardware interfaces | Industrial Ethernet 2 |
| Certificates and declarations (REACH date) | 20241206 |
| Certificates and declarations (REACH information) | True - contains substances > 0.1 mass percentage |
| Parameter | Value |
|---|---|
| CN8 | 85389091 |
| Output | Transistor |
| Function | PROFINET IO RT device. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI 24VDC. 8 DO 24VDC 0.5A |
| Analog inputs | 4 |
| Analog outputs | 2 |
| Delay time (τ) | 0.1 ... 32 ms |
| Number of digital inputs | 8 |
| Number of digital outputs | 8 |
| Certificates and declarations (SCIP) | a307b9ae-b352-4d4d-8ebf-99c63e467033 Germany |
| Number of digital configurable i (Os) | 0 |
The 1SAP220600R0001: Power comes from a 20.4 to 28.8 V DC supply; the module draws 5 mA from the input. Two Industrial Ethernet interfaces support ring or star PROFINET topologies. The transistor outputs switch at 24 VDC up to 0.5 A per channel. Delay time is programmable from 0.1 to 32 ms. IP20 enclosures keep the board clean inside a cabinet.
It is an active ABB CI501 device with no announced phase-out.
The listed CN8 code is 85389091, covering parts for electrical apparatus boards.
RoHS compliant per EU Directive 2011/65/EU, REACH true (contains substances >0.1%), and SCIP registered. WEEE category 5 (small equipment, B2B).
