What the module is and where it sits

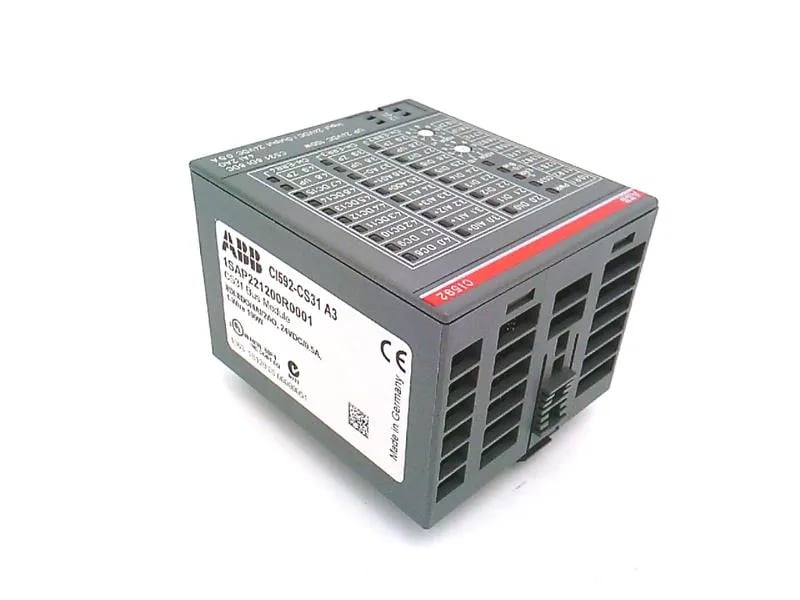

The ABB 1SAP221200R0001 is a CI592 distributed automation I/O module that operates as a CS31 slave on the CS31 fieldbus, mixing analog and digital channels on a single node. It carries 4 analog inputs accepting voltage, current or RTD signals, 2 analog outputs for voltage or current, 8 dedicated 24 VDC digital inputs and 8 configurable channels that can be set as either digital input or digital output at 24 VDC and 0.5 A per channel.
Where this class gets used
Mixed analog/digital CS31 nodes like the CI592 sit in a remote cabinet where RTD signals, voltage/current loops, and 24 VDC field devices meet on one backplane. The 4 RTD-capable inputs suit tank level, bearing temperature or process skids where Pt100 signals and discrete valve wiring converge.
Panel mounting and environment
Protection class is IP20, meaning the module is intended for cabinet mounting rather than field exposure. WEEE Category 5 (small equipment, no external dimension over 50 cm) and B2B classification keep end-of-life paperwork inside the industrial-commercial channel rather than consumer take-back schemes.
Compliance documentation
The unit is documented as RoHS-compliant under EU Directive 2011/65/EU and Amendment 2015/863 of 22 July 2019. REACH declaration is on file with a 20241206 date and confirms presence of substances above the 0.1 mass percentage threshold, so the SCIP database entry 14942fc4-de57-4845-83aa-816b6f8dd2fd must travel with any shipment into the EU.
