ABB 1SAP221500R0001 — PLC Communication Modules

ABB 1SAP221500R0001 PROFINET IO RT Gateway Module, 24 VDC

MPN1SAP221500R0001
Active

ABB CI506-PNIO, 1SAP221500R0001, PROFINET IO RT device gateway module, with 2 serial interfaces and CANopen master, 24 VDC supply.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

1SAP221500R0001 — Environmental
ParameterValue
IP protection degreeIP20
1SAP221500R0001 — Approvals
ParameterValue
RoHS complianceFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH complianceTrue - contains substances > 0.1 mass percentage

Product details

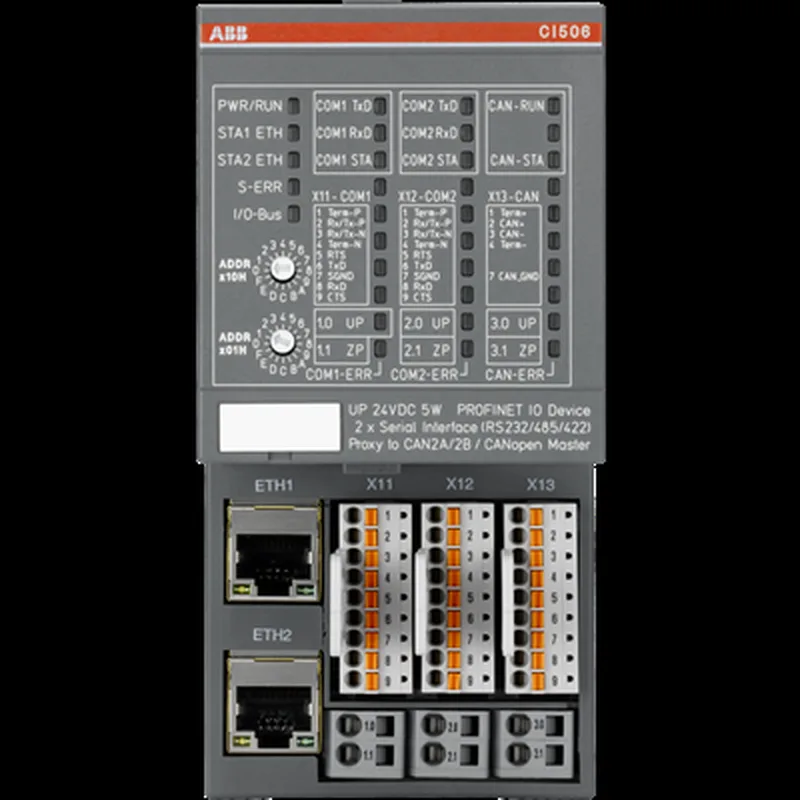

1SAP221500R0001 is a PROFINET IO RT gateway module that bridges two serial interfaces—RS232, RS422, RS485—and a CANopen master interface onto a PROFINET network. It runs on 24 VDC supply, draws 5 mA from the backplane, and supplies 0.5 A output. No onboard I/O; this is strictly a communication bridge for legacy field devices.

Two Industrial Ethernet ports for PROFINET line or ring topologies. Serial modes selected via configuration; no onboard DIPs for baud rate. Supply voltage range 20.4–28.8 VDC. IP20 rated.

Frequently asked questions

What is its CN8 customs code?

CN8 code is 85389091.

What is the output type and rating?

Output is transistor type, rated at 0.5 A.

What compliance documentation is available?

RoHS compliant per EU Directive 2011/65/EU and Amendment 2015/863. REACH: contains substances above 0.1% mass percentage. SCIP declaration available.

MPN
1SAP221500R0001
