ABB 1SAP240000R0001

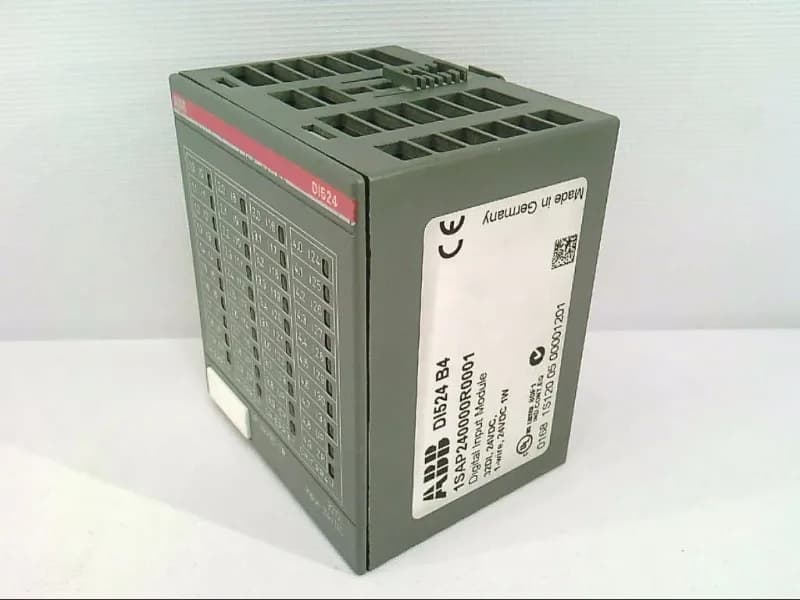

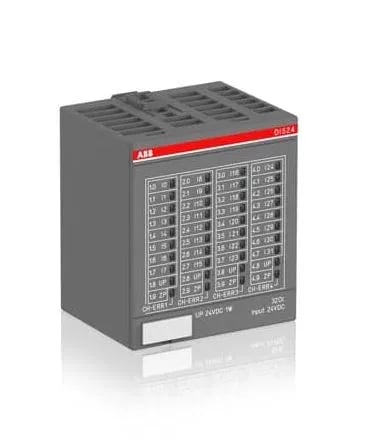

ABB 1SAP240000R0001 DI524, 32 DI 24VDC module

MPN1SAP240000R0001
Active

ABB DI524 distributed automation I/O module, 32 digital inputs 24 VDC, 20.4... 28.8 V DC supply, IP20, order code 1SAP240000R0001.

$306.41 – $348.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026

Specifications

1SAP240000R0001 specifications
ParameterValue
Input voltage typeDC
Additional information (Product main type)DI524
Supply voltage20.4 ... 28.8 V DC
Maximum input voltage0 ... 30 V
Input current5 mA
IP ratingIP20
Certificates and declarations (REACH date)20241206
Certificates and declarations (REACH information)True - contains substances > 0.1 mass percentage
CN885389091
Function32 DI: 24VDC
Delay time (τ)0.1 ... 32 ms
Number of digital inputs32
Certificates and declarations (SCIP)4c0d2eb2-95de-4c2f-8a8e-3c148ea4248f Germany
Number of digital configurable i (Os)0

Product details

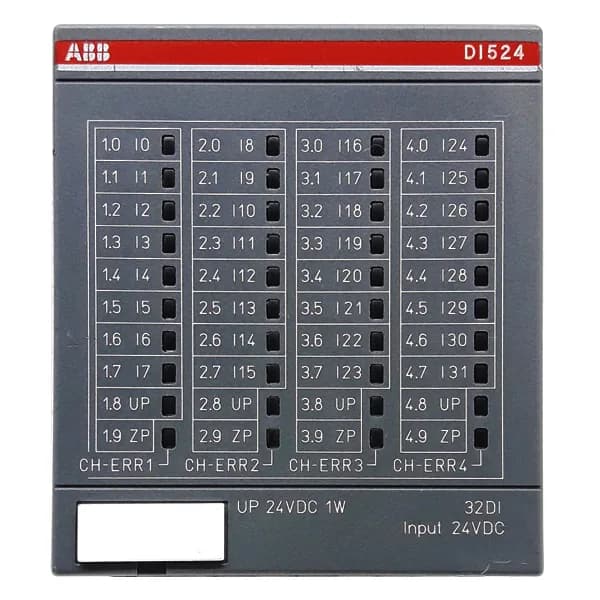

DI524 — 32-channel 24 VDC digital input, current production

ABB 1SAP240000R0001 DI524 runs on a 20.4... 28.8 V DC supply, with digital inputs rated to 0... 30 V for transient-tolerant field wiring. Each input has a configurable delay of 0.1... 32 ms, so the same module handles both debounced contact closures and shorter pulse trains without external filtering. Degree of protection is IP20 — the DI524 is built to live inside a cabinet, not out at the wet well, so any field deployment needs an enclosure rated for the actual environment.

What the ratings actually decide at install

CN8 85389091 — this is the customs classification carried on the ABB declaration, useful when the part is imported against a B2B PO with WEEE Category 5 (small equipment) applied.

Compliance pack and sourcing posture

The ABB declaration package covers RoHS per EU Directive 2011/65/EU and Amendment 2015/863 (July 22, 2019), REACH disclosure (SVHC present above 0.1 mass percent, declaration dated 20241206), and a WEEE Category 5 B2B classification with the SCIP reference 4c0d2eb2-95de-4c2f-8a8e-3c148ea4248f for Germany.

Frequently asked questions

What is 1SAP240000R0001's listed function on this PLC Expansion Modules line?

The function is 32 digital inputs at 24 VDC — a DI524 pure-input module with no configurable or output channels.

What compliance documentation does ABB provide for 1SAP240000R0001?

ABB's declaration pack covers RoHS (EU 2011/65/EU and 2015/863 of July 22, 2019), a REACH disclosure dated 20241206 confirming SVHC presence above 0.1 mass percent, and the SCIP reference 4c0d2eb2-95de-4c2f-8a8e-3c148ea4248f for Germany.

Will 1SAP240000R0001 drop into a panel specified around 1SAP240100R0001 without rewiring?

No — 1SAP240100R0001 is the DC532, which combines 16 DI with 16 configurable DI/DO transistor outputs at 0.5 A. The DI524 has no outputs, so the I/O map changes and the wiring has to be reworked, not just re-inserted.
