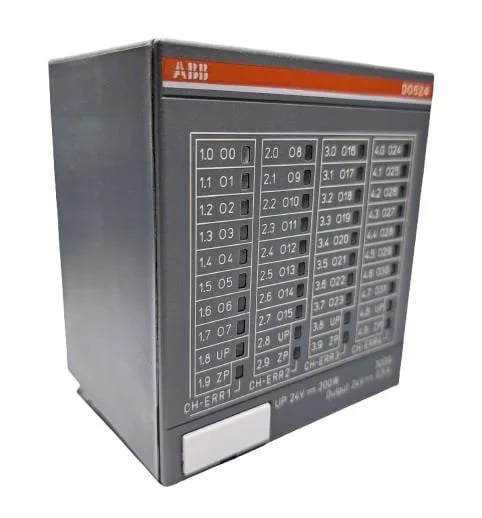

ABB 1SAP240700R0001

ABB 1SAP240700R0001 DO524 32 DO 24VDC 0.5A

MPN 1SAP240700R0001
Active

ABB DO524 digital output module, distributed automation I/O, 32 transistor outputs at 24 VDC 0.5 A, supply 20.4 to 28.8 V DC, IP20, order code 1SAP240700R0001.

$241.64 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

1SAP240700R0001 specifications
ParameterValue
Supply voltage20.4 ... 28.8 V DC
Output current0.5 A
IP ratingIP20

Product details

What lands in the cabinet

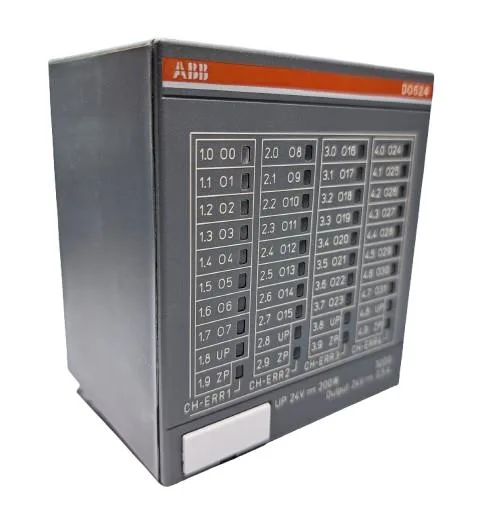

The ABB 1SAP240700R0001 is the DO524 digital output module in the distributed automation I/O family: 32 transistor outputs sourced at 24 VDC with a 0.5 A per-channel rating.

Cabinet, not field

Degree of protection is IP20, which puts this firmly on the backplane inside a sealed cabinet. For lift-station or wet-well retrofits that means the module sits behind the enclosure door — it is not the part that takes the hose-down.

Where the 0.5 A actually matters

The 0.5 A per-channel figure is the transistor sink rating, not a relay contact rating — inductive DC loads still want a flyback diode across the coil, and the total simultaneous sink is the thermal ceiling of the module, not the headline channel count multiplied out. Cross-shopped against the 1SAP240100R0001 DC532, which carries 16 fixed DI plus 16 configurable DI/DO at the same 0.5 A output stage, the DO524 drops into the same panel space but trades away the 16 dedicated inputs for 16 extra pure outputs — a clean swap only when the DI half of the DC532 was unused or has been re-mapped elsewhere on the bus.

Compliance pack on file

RoHS statement follows EU Directive 2011/65/EU and Amendment 2015/863 dated 22 July 2019. REACH declaration is filed and dated 2024-12-06, with the SVHC > 0.1 mass% threshold flagged as true — substance data is on file via the listed SCIP ID for the German market. WEEE classification is Category 5, small equipment with no external dimension over 50 cm, sold business-to-business — standard disposal route for retired modules.

MPN
1SAP240700R0001
