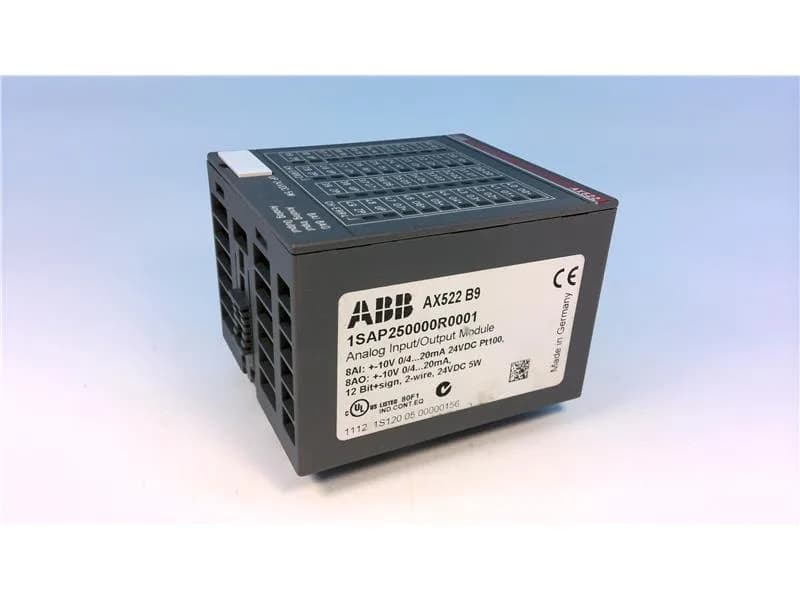

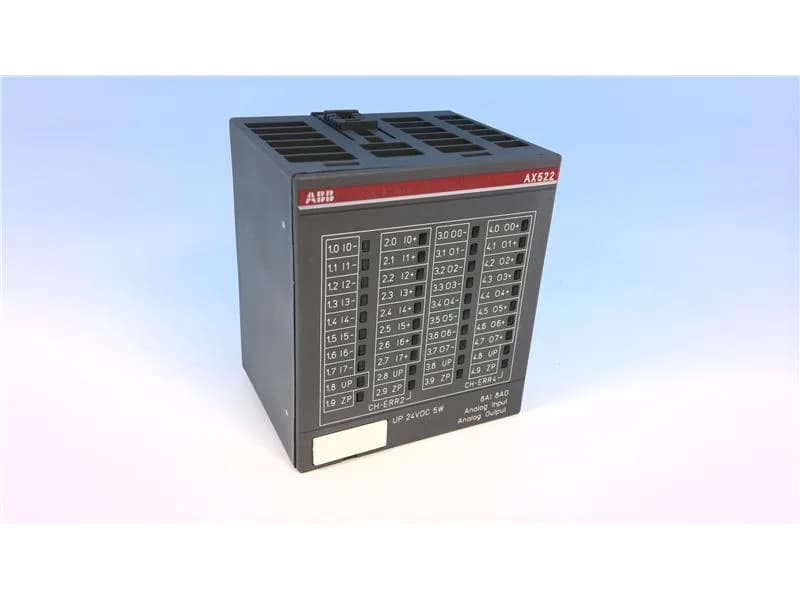

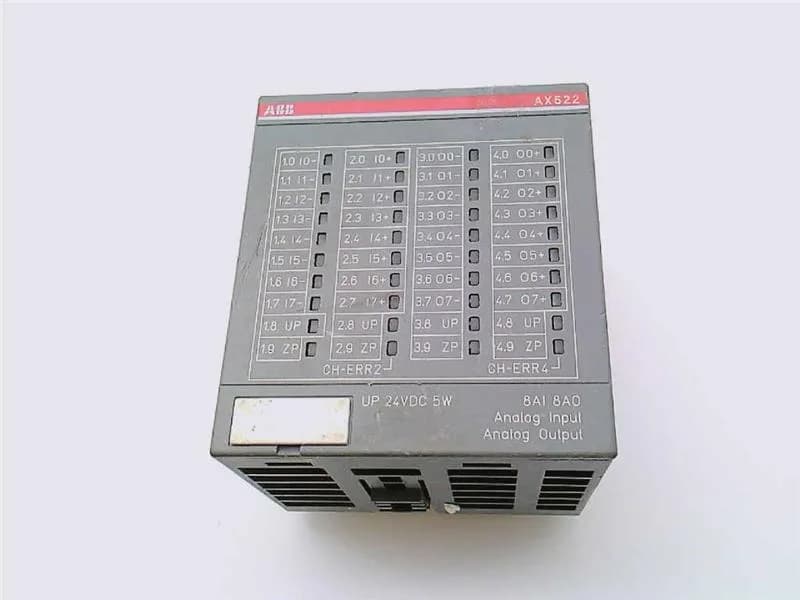

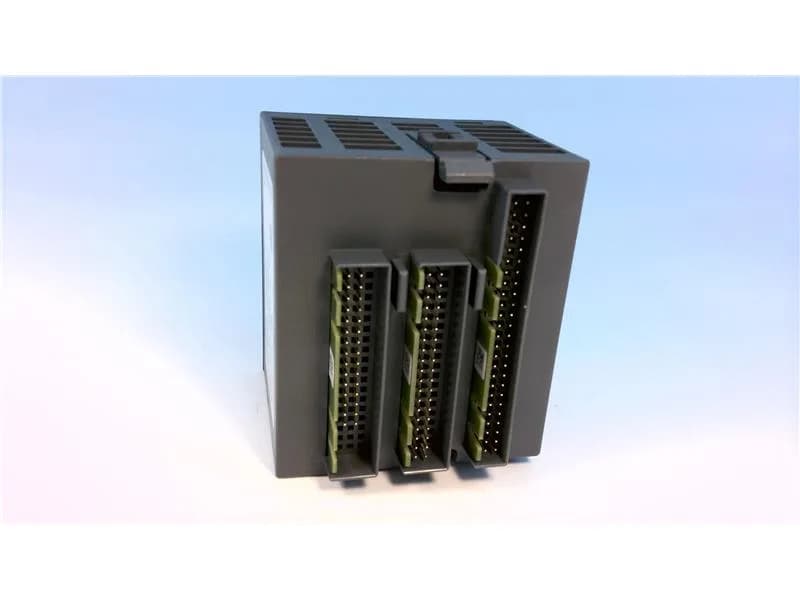

The ABB 1SAP250000R0001 is an AX522 distributed automation module offering 8 analog inputs — configurable for voltage, current, RTD, or digital input — plus 8 analog outputs (4 combination voltage/current and 4 voltage-only). 13-bit resolution on the input side gives adequate granularity for process signals; the 24 V DC supply and IP20 housing match standard control cabinet conditions. Operating range 0 to +60 °C fits most indoor environments.
ABB 1SAP250000R0001 AX522 Analog I/O Module, 8 AI / 8 AO, 24
MPN1SAP250000R0001
Active
ABB AX522, 1SAP250000R0001, distributed automation analog input/output module, 8 AI: U, I, RTD, DI; 8 AO: 4 U/I + 4 U; 13-bit AI resolution, 24 V DC supply, IP20 housing, 0 to +60 °C.
$1,270.13Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Additional information (Product main type) | AX522 |
| Supply voltage | 24 V DC |
| IP rating | Housing IP20 |
| Output signal | 4 AO: U, I. 4 AO: U |
| Certificates and declarations (REACH date) | 20241206 |
| Certificates and declarations (REACH information) | True - contains substances > 0.1 mass percentage |
| CN8 | 85389091 |
| Function | 8 AI: U, I, RTD. 4 AO: U, I. 4 AO: U |
| Resolution | Analog Input 13 bit |
| Input signal | U, I, RTD, DI |
| Analog inputs | 8 |
| Analog outputs | 8 |
| Ambient air temperature | Operation 0 ... +60 °C |
| Certificates and declarations (SCIP) | b682868f-f631-443c-8799-443e5f9c5308 Germany |
| Number of analog configurable i (Os) | 0 |
Product details
Frequently asked questions
What is the CN8 tariff code for this module?
The listed CN8 code is 85389091.
What compliance documentation does this module have?
RoHS compliance per EU Directive 2011/65/EU and Amendment 2015/863 is declared. REACH information confirms the product contains substances above 0.1% mass percentage but is compliant. A SCIP number for Germany is also available.
