What sits in the panel slot

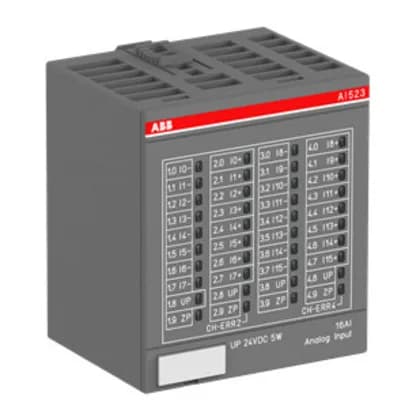

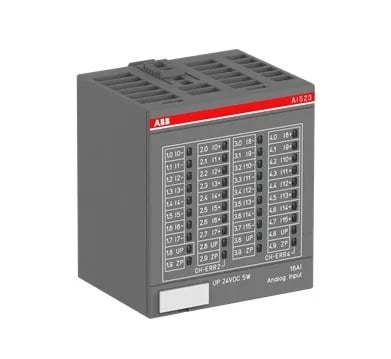

The ABB 1SAP250300R0001 (AI523) is a 16-channel analog input module on the distributed automation I/O line, with each channel configurable for U, I, RTD or DI on the same wiring terminals. Resolution is 13 bit across the 16 analog inputs; channel types are U, I, RTD, DI per the spec row. Use the bit count to set the smallest step on the loop rather than reading it as a lab-grade figure. Power is taken from the same 24 V DC backplane used across the family, and the housing carries an IP20 rating, so the module is sized for closed-cabinet DIN-rail mounting rather than field-side exposure.
Operating envelope and climate budget
Operating ambient air temperature is 0... +60 °C, so the cabinet cooling budget has to keep internal air inside that band even when the AI523 is densely populated next to other heat-generating slices on the backplane. Because the housing is IP20 with no conformal-coat rating on the spec, the module belongs inside a sealed enclosure rather than on the plant floor; if condensation or washdown is in scope, the enclosure rating is what governs the install, not the AI523 itself.
Compliance pack carried by the part
RoHS conformity is declared against EU Directive 2011/65/EU with Amendment 2015/863 of July 22, 2019, and a REACH declaration is on file dated 20241206, with the SCIP dossier entry 7cb90025-28e2-46bb-94d1-6c5d380058b3 covering the Germany market. The REACH declaration flags that the product contains substances above 0.1 mass percentage, which is the threshold the EU SCIP database is built around — useful to know for the BOM file but not a compliance failure on its own. WEEE classification is Category 5 (small equipment, no external dimension above 50 cm), and the WEEE flag is Business To Business, so end-of-life routing for industrial spares follows the B2B path.
Where the AI523 sits next to its siblings

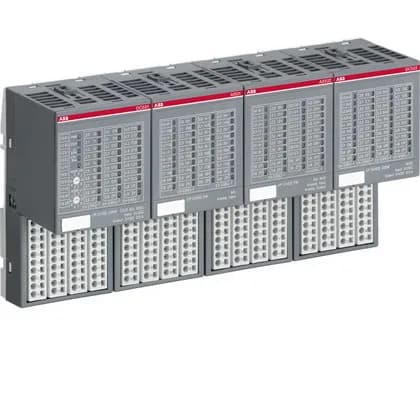

Within the same ABB distributed-I/O family, the AI523 is the 16-channel mixed-signal analog slice; the DI524 (1SAP240000R0001) is its pure-digital counterpart at 32 DI on 24 V DC with 0.1... 32 ms input delay, so the two are complementary on a multi-slice rack rather than interchangeable. The terminal-unit SKUs TU516 (1SAP212000R0001) and TU532 (1SAP217000R0001) listed alongside are spring-terminal baseplates for analog/digital and 230 VAC/relay modules respectively — they are the wiring carriers that the AI523 plugs into, not alternate analog modules.
