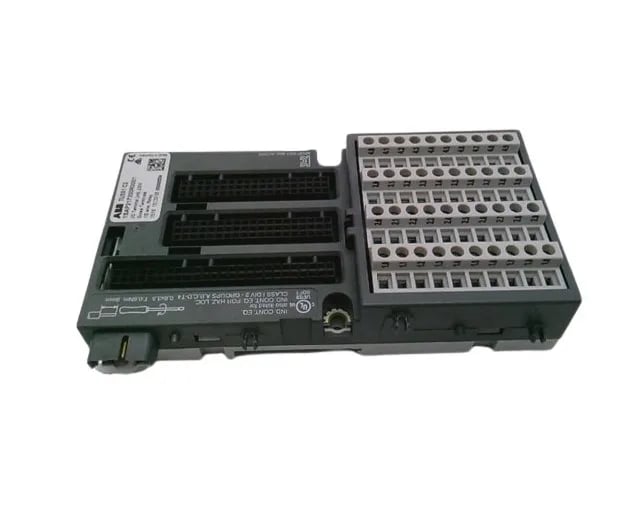

ABB 1SAP270000R0001

ABB 1SAP270000R0001 DC541, 8 DI/DO 24VDC 0.5A

MPN 1SAP270000R0001
Active

ABB 1SAP270000R0001, DC541 function module for the distributed automation I/O line: 8 fast configurable DI/DO on 24 VDC at 0.5 A output current, mounted on a terminal base, IP20, ambient 0... +60 °C, active production.

$1,090.22 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

1SAP270000R0001 specifications
ParameterValue
Voltage24 V DC
Supply voltage24 V DC
Output current0.5 A
IP ratingIP20
Temp operating max60 °C
Temp operating min0 °C

Product details

What this module actually is

The ABB 1SAP270000R0001 is a function module on the Distributed Automation I/O line, product main type DC541, and its job on a panel is to give the rack eight fast configurable digital points — each usable as input or output — switched on 24 VDC at 0.5 A per channel, and it mounts on a terminal base (DC541-CM) rather than standing alone. Supply sits at 24 V DC and the output voltage the module hands the field is 24 V DC, so it drops onto a standard 24 VDC control bus; nothing exotic in the power chain, and 0.5 A per point sets the ceiling on what a single channel can switch directly — relays, solenoids, small indicators, contactor coils under that ceiling, anything larger wants an interposing relay.

Panel-side fit

The housing is IP20, so the module is a cabinet-internal slice; it does not go in a field-side enclosure on its own, and any dust or moisture protection comes from the cabinet spec, not the module. Eight configurable points means a designer can split the slice as the application needs — eight in, eight out, or any mix — provided the firmware configuration on the host controller is set to match; the module itself does not lock the role of a channel.

Sourcing posture

Fit is the question to close: the 24 VDC supply and 0.5 A channel rating, the IP20 cabinet-internal housing, the 0... +60 °C ambient envelope, and the eight configurable DI/DO are the cited facts that confirm the BOM line, and the part is quoted to order against an RFQ with the compliance pack above already on file.

MPN
1SAP270000R0001
