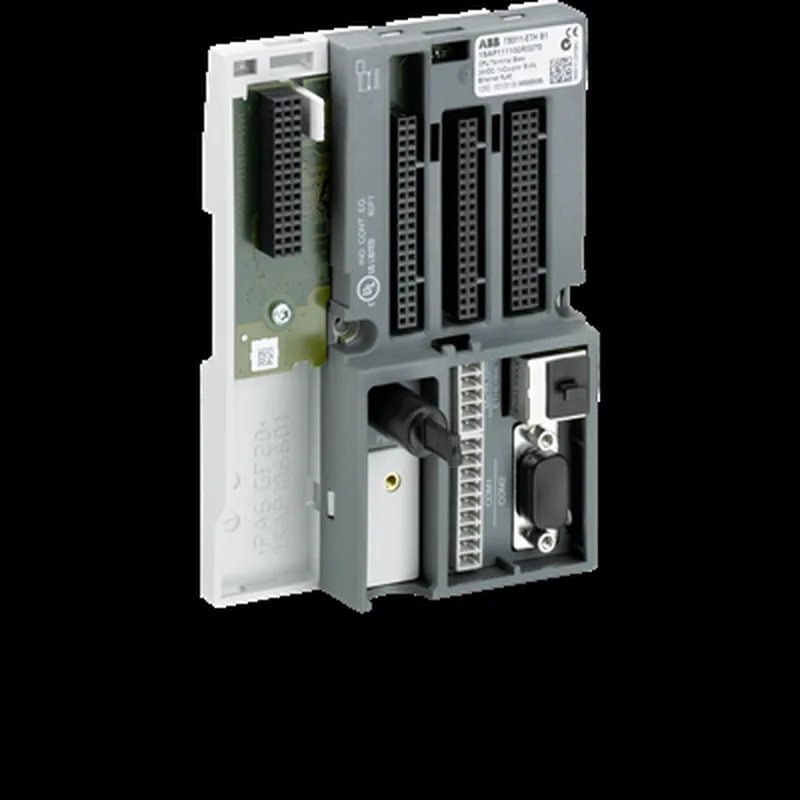

The 1SAP311100R0270: This TB511-ETH-XC terminal base sits on the AC500 V2 rack, providing one slot for a communication module along with an Ethernet interface and two serial interfaces (RS232/RS485). Rated for operation from -30 to +70 °C, it covers most industrial ambient conditions without derating. The base is DC-powered (Input Voltage Type DC) and carries IP20 protection for use inside a closed cabinet. It carries RoHS compliance per EU Directive 2011/65/EU (2015/863 amendment) and REACH declaration.
1SAP311100R0270 ABB TB511-ETH-XC Terminal Base, AC500 V2, -3
MPN1SAP311100R0270
Active
ABB TB511-ETH-XC, AC500 V2 terminal base, 1 comm slot, Ethernet, 2 serial RS232/RS485, IP20, -30..+70°C, active.
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Environmental
| Parameter | Value |
|---|---|
| IP protection degree | IP20 |
Approvals
| Parameter | Value |
|---|---|
| RoHS compliance | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH compliance | True - contains substances > 0.1 mass percentage |
Other specifications
| Parameter | Value |
|---|---|
| CN8 | 85389091 |
| Function | For AC500 V2. 1 slot for communication module. Ethernet interface. 2 serial interfaces RS232/RS485 |
| Input voltage type | DC |
| Ambient air temperature | Operation -30...+70 °C |
| Certificates and declarations (SCIP) | b22d72d3-3296-4aa9-a759-36e33acee4a3 Germany |
| Additional information (Product main type) | TB511 |
| Certificates and declarations (REACH date) | 20241206 |
Product details
Frequently asked questions
What is the function of this terminal base?
It is a terminal base for AC500 V2 PLC with 1 slot for a communication module, an Ethernet interface, and 2 serial interfaces RS232/RS485. The product name is TB511-ETH-XC.
What compliance documentation is available?
RoHS compliant following EU Directive 2011/65/EU and amendment 2015/863, and REACH declared. SCIP dossier available for Germany.
What is the CN8 customs code?
The CN8 code is 85389091.
