ABB 1SAP314100R0270 — PLC Communication Modules

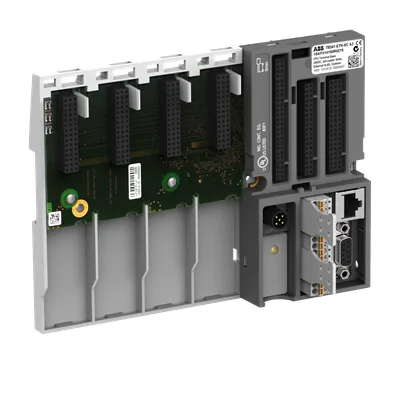

ABB 1SAP314100R0270 TB541-ETH-XC Terminal Base, 4 Slots

MPN1SAP314100R0270
Active

ABB TB541-ETH-XC terminal base, 1SAP314100R0270, for AC500 V2, 4 communication module slots, Ethernet + 2 RS232/RS485, IP20.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

1SAP314100R0270 — Environmental
ParameterValue
IP protection degreeIP20
1SAP314100R0270 — Approvals
ParameterValue
RoHS complianceFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH complianceTrue - contains substances > 0.1 mass percentage
1SAP314100R0270 — Other specifications
ParameterValue
CN885389091
FunctionFor AC500 V2. 4 slots for communication module. Ethernet interface. 2 serial interfaces RS232/RS485
Input voltage typeDC
Ambient air temperatureOperation -30...+70 °C
Certificates and declarations (SCIP)2a3ae44e-c5b4-47ba-93a7-7a749a489a49 Germany
Additional information (Product main type)TB541
Certificates and declarations (REACH date)20241206

Product details

Terminal base for AC500 V2 rack

The 1SAP314100R0270 terminal base is the TB541-ETH-XC carrier for an AC500 V2 distributed PLC chassis, providing four slots for communication modules plus an onboard Ethernet interface and two serial RS232/RS485 ports. Its function: For AC500 V2, 4 slots for communication module, Ethernet interface, 2 serial interfaces RS232/RS485. Rated IP20, it is intended for clean, indoor control panels. The operating ambient range spans -30 to +70 °C, suited for unconditioned electrical rooms or outdoor cabinets with climate control.

Marked current and active, this terminal base remains in regular production. No end-of-life notice or last-time buy window is in effect.

Frequently asked questions

What is the function of 1SAP314100R0270?

It is a terminal base for AC500 V2 with 4 slots for communication modules, an Ethernet interface, and 2 serial RS232/RS485 interfaces.

What is the CN8 code for this part?

The CN8 tariff code is 85389091.

What compliance documentation is available for this terminal base?

RoHS compliance per EU Directive 2011/65/EU and Amendment 2015/863, and REACH declaration (substances >0.1% mass percentage) are on file.

MPN
1SAP314100R0270
