1SAP450700R0001 - ABB
MPN1SAP450700R0001
Active

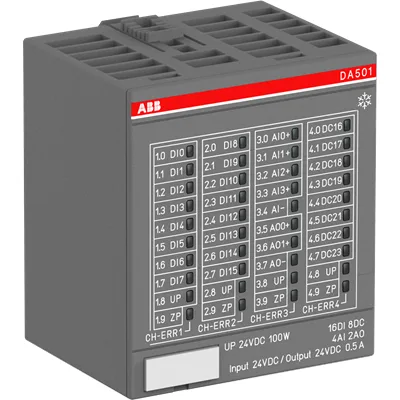

Digital/analog I/O module.16DI:24 V DC.4AI:U, I, RTD, DI.2AO:U, I.8DC:24 V DC(DA501-XC)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Input voltage type | DC |
| Output voltage type | DC |
| Additional information (Product main type) | DA501 |
| Supply voltage | 20.4 ... 28.8 V DC |
| Voltage | 24 V DC |
| Input voltage | 24 V DC |
| Maximum input voltage | 30 V |
| Output voltage | 24 V DC |
| Input current | 5 mA |
| Output current | 0.5 A |
| IP rating | IP20 |
| Output signal | U, I |
All specifications+14 ▾
| Parameter | Value |
|---|---|
| Certificates and declarations (REACH date) | 20241206 |
| Certificates and declarations (REACH information) | True - contains substances > 0.1 mass percentage |
| CN8 | 85389091 |
| Output | Transistor |
| Function | 16 DI: 24VDC. 4 AI: U, I, RTD. 2 AO: U, I. 8 configurable DI/DO: 24VDC 0.5A |
| Resolution | Analog Input 13 bit |
| Input signal | U, I, RTD, DI |
| Analog inputs | 4 |
| Analog outputs | 2 |
| Delay time (τ) | 0.1 ... 32 ms |
| Ambient air temperature | Operation -30...+70 °C |
| Number of digital inputs | 16 |
| Certificates and declarations (SCIP) | aa2fa273-d3d5-4236-947e-4b31bd09a9d7 Germany |
| Number of digital configurable i (Os) | 8 |
MPN
1SAP450700R0001
