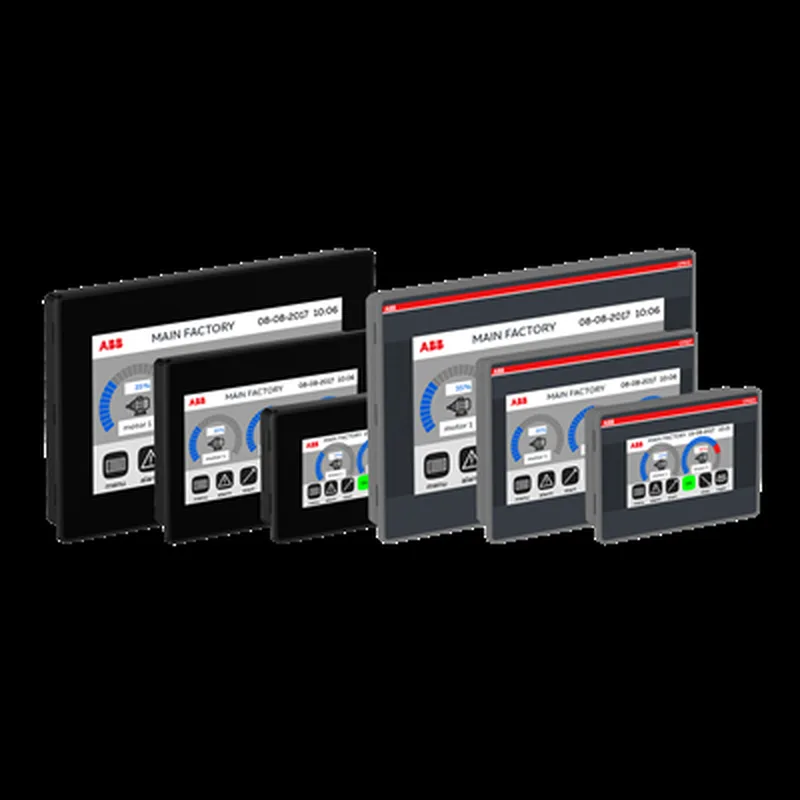

The ABB 1SAP510100R2001 is a CP610-B series 10.1" TFT resistive touch screen HMI with 64 K colors and 1024 x 600 pixel resolution. It includes an embedded Chromium Browser for web-based SCADA or dashboard access directly on the panel, which saves an external thin-client box. The black-front bezel is standard for the CP610 line. Power comes from an 18 to 32 V DC supply, so it fits standard 24 VDC control panels with tolerance for brownout conditions down to 18 V. The front face carries IP66 protection, meaning it withstands hose-down and dust ingress — suitable for food, beverage, or washdown-zone placement. Operating ambient range is 0 to 50 °C. Memory is 60000 kB (60 MB) for application storage and runtime. A single Industrial Ethernet port is built in, supporting the fieldbus protocol stack for the CP610 platform. The unit depth behind the panel is 29 mm — relatively shallow for a 10.1" display, which helps in tight enclosures.
Panel integration
Mounts into a standard panel cutout with the 29 mm behind-panel depth. The resistive touch technology works with gloved hands — important for food processing or cold-chain environments where operators wear gloves. Front IP66 means the gasket seals against direct spray, so no additional cover or membrane is needed for washdown zones.
