ABB 1SAP530100R0001

ABB CP630 1SAP530100R0001 Control Panel, 5.7" TFT Touch

MPN 1SAP530100R0001
Active

ABB CP630 Control Panel, 5.7" TFT color touch screen, 320x240 px, IP66 front, 24 VDC, 2x Ethernet, RS232/422/485, 64k colors, active lifecycle.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

1SAP530100R0001 specifications
ParameterValue
Temp operating max50 °C
Temp operating min0 °C

Product details

What the CP630 brings to the panel

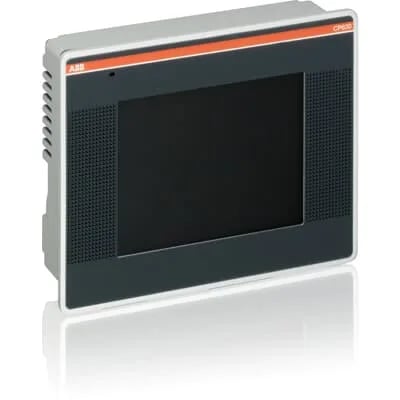

The ABB CP630 (1SAP530100R0001) is a 5.7" TFT color touch-screen control panel with a 4:3 aspect ratio and 320x240 pixel resolution, displaying 64k colors. It runs on PB610 Panel Builder 600 software and carries 256 MB DDR RAM for user programs plus 128 MB flash disk for data storage. The front face mounts into a panel cutout and seals to IP66 per IEC 60529, so it handles washdown environments in food, beverage, or pharmaceutical lines without a secondary cover. Power is 24 VDC (18 to 30 V range), drawing 16.8 W typical. Two 100 Mbit Ethernet ports handle plant-network connectivity, and a serial port configures as RS232, RS422, or RS485 for legacy PLC drops. Two USB 2.0 host ports support program uploads or peripheral connections. A hardware real-time clock with battery backup keeps time across power cycles. Operating ambient air temperature is 0 to +50 °C. The front housing is Zamak (zinc alloy), durable for repeated panel access. Password protection with 8 user levels controls screen access — useful for separating operator, maintenance, and engineering views on the same terminal.

Integration notes

Mounts from the front face into a panel cutout — no DIN-rail bracket. The IP66 seal requires a clean, flat panel surface and proper gasket compression. Ethernet and serial cables enter from the rear; plan for at least 100 mm clearance behind the panel for connector access and bend radius.

MPN
1SAP530100R0001
