HMI integration walkthrough

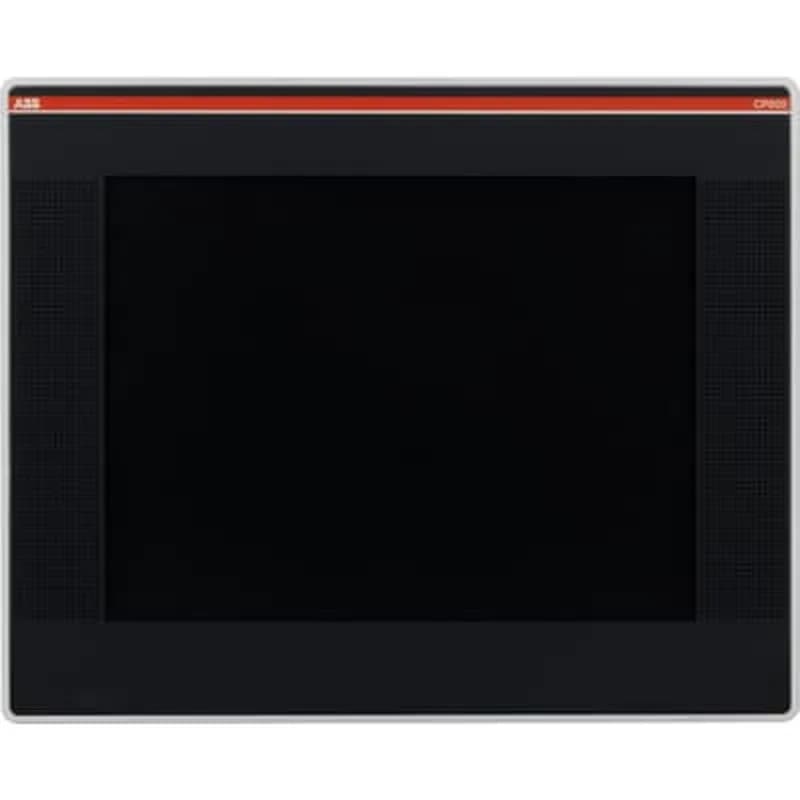

The ABB CP650-WEB, order code 1SAP550200R0001, is a 10.4-inch TFT color touch panel with LED backlight and 800 x 600 pixel resolution, running 64k colors. It draws 24 W from a 24 V DC supply (18 to 30 V DC range) and presents a front IP66 face per IEC 60529, so the display and touch layer survive washdown in food, beverage, or pharmaceutical lines — provided the rear enclosure maintains the seal. The housing front is aluminium; the frame size is not defined in the standard catalogue, so verify cutout dimensions against the panel drawing before committing the gland plate. Communication is fixed at one Ethernet 10/100 MBit port plus two serial ports, each configurable for RS232, RS422, or RS485. That covers a Modbus TCP uplink to a PLC while leaving a serial drop for legacy drives or a multi-drop temperature scanner — no fieldbus slice needed. The hardware real-time clock carries battery backup, so time-stamped alarms survive a power-cycle without a network time-server call at boot. User program memory is 256 MB DDR RAM; user data lives on a 128 MB flash disk. Password protection with eight user levels controls screen access — enough to separate operator, supervisor, and engineering tiers on a single panel without external authentication.
Rated ambient air temperature during operation is 0 to +50 °C. The WEEE category is 5 (Small Equipment, no external dimension more than 50 cm), classified as Business To Business. The country of origin is Italy. The customs tariff code is 85371091.
