ABB 1SDA048956R1

ABB 1SDA048956R1 Changeover Contact, Tripped Indication, Cur

MPN 1SDA048956R1

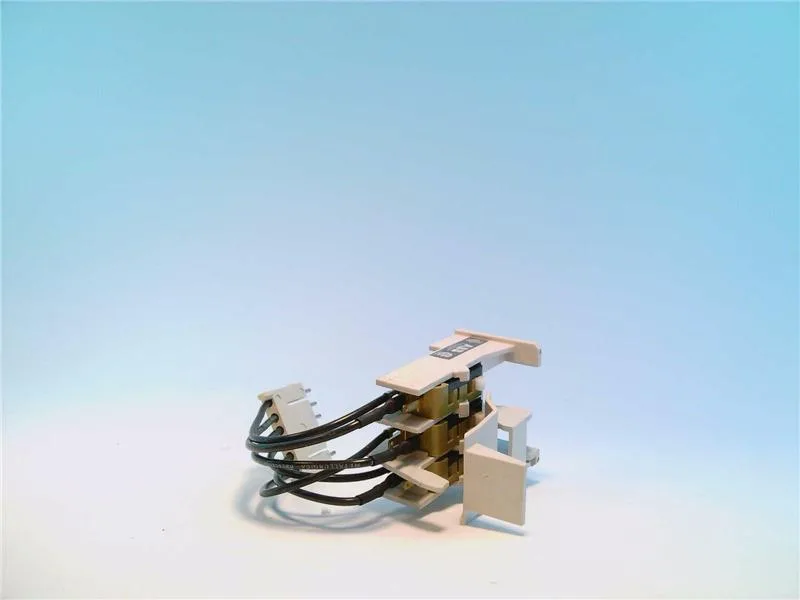

ABB 1SDA048956R1 auxiliary contact block, 1 changeover contact open + 1 changeover contact closed + 1 contact open for tripped indication S6-S7, current lifecycle stage.

$115.57 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

1SDA048956R1 specifications
ParameterValue
Product type1 Changeover contact open + 1 Changeover contact closed + 1 Contact open for tripped indication S6-S7
Weight0.16 kg

Product details

Contact configuration for breaker status feedback

The ABB 1SDA048956R1 is an auxiliary contact block that gives three discrete signal paths from a circuit breaker: one changeover contact that is open when the breaker is closed, one changeover contact that is closed when the breaker is closed, and a separate contact that opens only on a tripped condition (S6-S7). That third contact is the one that drives a remote alarm or PLC input when the breaker clears a fault — it stays closed during normal on/off cycles and only changes state on a trip, so you get a dedicated fault signal without wiring through the main breaker aux.

MPN
1SDA048956R1
