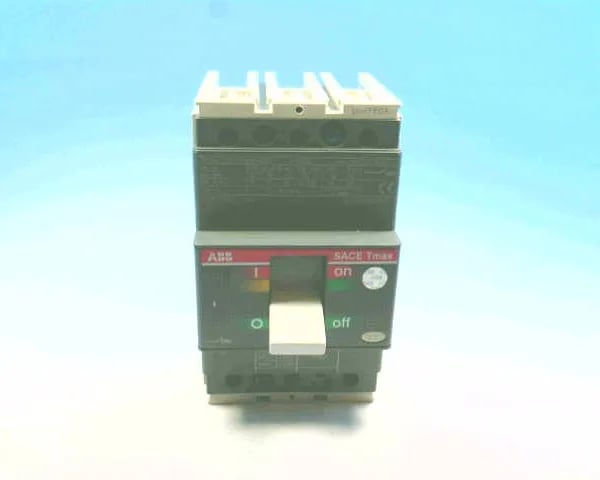

ABB 1SDA050924R1 MCCB
MPN1SDA050924R1
Obsolete
1SDA050924R1 by ASEA BROWN BOVERI
$763.27Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Sub-type | T1 |
| Release type | TM |
| Terminal connection type | Fixed Circuit-Breakers |
| Additional information (Product type) | CB |
| Additional information (Product main type) | SACE Tmax T |
| Test voltage max (Utest) | 3000 V |
| Voltage | 690 V AC |
| Test voltage at industrial frequency for 1 minute | 3000 V |
| Current | 160 A |
| Short-Circuit performance level | N |
| Rated uninterrupted current | 160 A |
| Rated service Short-Circuit breaking capacity | (220 V AC) 37,5 kA |
All specifications
| Parameter | Value |
|---|---|
| Rated ultimate Short-Circuit breaking capacity | (220 V AC) 5 kA |
| Power loss | at Rated Operating Conditions per Pole 15 W |
| Poles | 3P |
| Electrical durability | 8000 cycle |
| Mechanical durability | 25000 cycle |
| Standards | IEC 60947 |
| Release | TMD |
| Environmental information | 1SDL000140R0 |
| Object classification code | Q |
| Additional information (Version) | F |
| Additional information (Suitable for) | T1 |
| Certificates and declarations (Wiring diagram) | 1SDM000030R0001 |
| Additional information (Suitable for product class) | Moulded Case Circuit Breakers |
| Certificates and declarations (Instructions and manuals) | ITSCE-RH0011001 |
| Certificates and declarations (Data sheet, technical information) | 1SDC210004D0203 |
| Certificates and Declarations/Instructions and manuals (Part 2) | ITSCE-RH0100.001 |
| Certificates and Declarations/Instructions and manuals (Part 3) | ITSCE-RH0011002 |
| Certificates and Declarations/Data sheet, technical information (Part 2) | 1SDM000030R0001 |
MPN
1SDA050924R1
