ABB 1SDA067417R1
MPN1SDA067417R1
Active

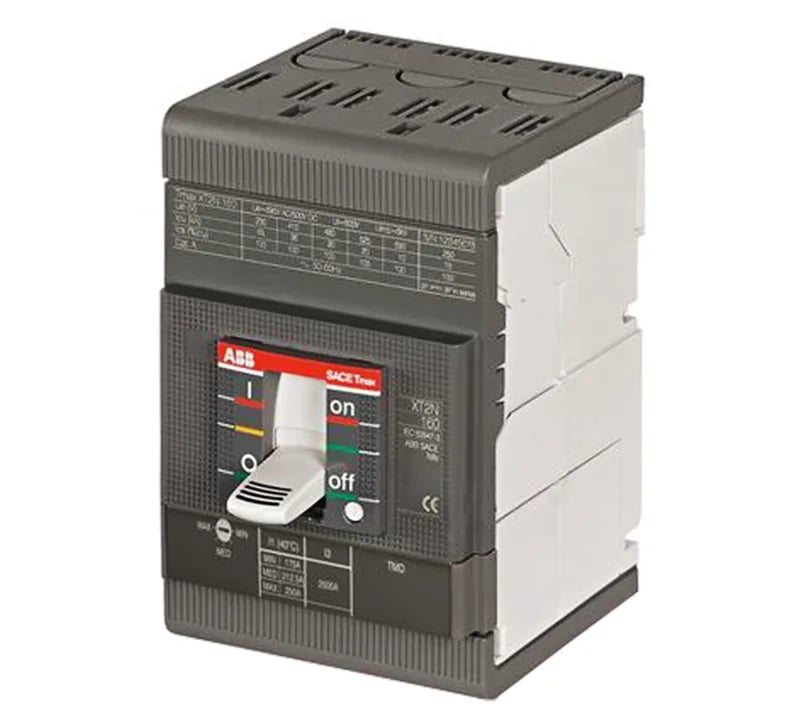

1SDA067417R1 by ASEA BROWN BOVERI
$858.52Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Sub-type | XT1 |
| Current type | AC/DC |
| Release type | TM |
| Terminal type | Bolt |
| Terminal connection type | Front |
| Additional information (Product type) | Automatic Circuit Breaker |
| Additional information (Product main type) | SACE Tmax XT |
| Additional information (Circuit breaker type to be associated) | Power Distribution |
| Voltage | 690 V AC |
| Current | 125 A |
| Short-Circuit performance level | N |
| Rated uninterrupted current | 160 A |
All specifications
| Parameter | Value |
|---|---|
| Rated service Short-Circuit breaking capacity | (220 V AC) 50 kA |
| Rated ultimate Short-Circuit breaking capacity | (220 V AC) 65 kA |
| Rated instantaneous Short-Circuit current setting | 1250 A |
| Power loss | at Rated Operating Conditions per Pole 10.7 W |
| Rated frequency | 50 / 60 Hz |
| Poles | 3P |
| Material compliance (SCIP) | a017b995-7677-4032-97d0-70955e42da44 Italy |
| Material compliance (Simplified SCIP) | 1674f522-863e-4b10-9b22-1392e649868f Germany |
| Additional information (CAD dimensional drawing) | 1SDH001295R0008 |
| Certificates and declarations (Dimension diagram) | 1SDH000719R0100 |
| Material compliance (Toxic substances control act - TSCA) | 9AKK108467A8326 |
| Material compliance (Conflict minerals reporting template) | 9AKK108467A5658 |
| Electrical durability | 120 cycles per hour |
| Mechanical durability | 240 cycles per hour |
| Standards | IEC60947-2 |
| Release | TMD |
| Opening time | CB with SOR 30 ms |
| Setting range | 87.5...125 A |
| E-Number (Norway) | 4379209 |
| E-Number (Sweden) | 3182428 |
| Tightening torque | 6 N·m |
| E-Number (Finland) | 3640520 |
| Recommended screw driver | Main Circuit M6 |
| Environmental information | 9AKK108467A6707 |
| Object classification code | Q |
| Additional information (Version) | F |
| Connecting capacity main circuit | Busbar 45.5 ... 80 mm² |
| ABB EcoSolutions (ABB EcoSolutions) | Yes |
| ABB EcoSolutions (Extended product lifetime) | Product Modularity |
| Certificates and declarations (Wiring diagram) | 1SDM000068R0001 |
| Certificates and declarations (Mechanical drawings) | 1SDH000719R0100 |
| Certificates and declarations (Instructions and manuals) | 1SDH000719R0001 |
| ABB EcoSolutions (End of life disassembling instructions) | 9AKK108468A2347 |
| Certificates and declarations (Data sheet, technical information) | 1SDC210100D0206 |
| ABB EcoSolutions (ABB site meeting group waste to landfill target) | UL 2799 Zero Waste To Landfill Validation available |
