The 1SDA068091R1: ABB XT4N 250 distribution breaker, 3-pole, rated 225 A continuous with a 250 A frame. Thermal-magnetic TMA trip unit lets you dial the overload and short-circuit settings — set-and-forget, no electronics. Good for lighting panels, small feeders, or as a main on a 690 V AC line.

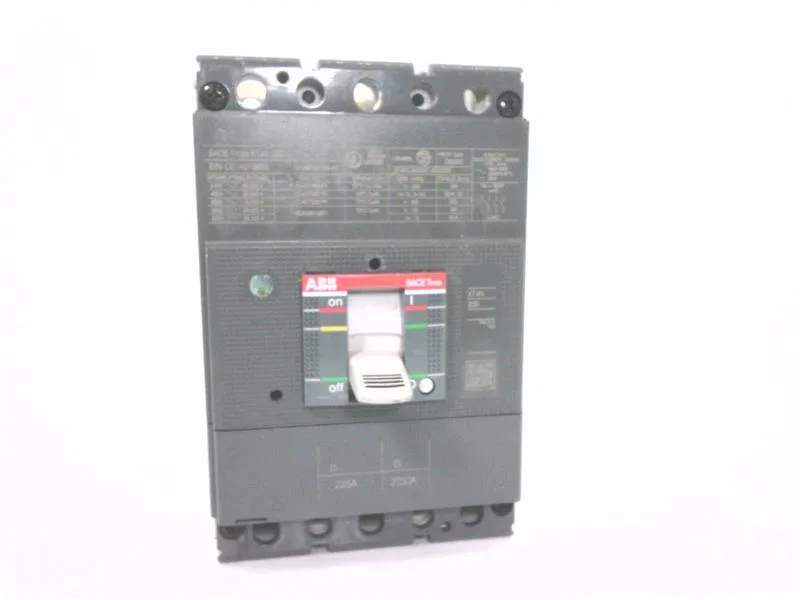

ABB 1SDA068091R1 XT4N 250 TMA 225-2250, 3P, 225A
MPN1SDA068091R1
ABB, XT4N 250 TMA 225-2250, 3-pole, 225A adjustable thermal-magnetic distribution circuit breaker.
$347.98 – $472.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Number of poles | 3 poles |
| Parameter | Value |
|---|---|
| In | 225 |
| Iu | 250 |
| Dimensions | XT4 |
| Type | XT4N 250 TMA 225-2250 3p F F |
| Weight | 2.1 Kg |
| Trip units | TMA |
| Product type | XT4N 250 TMA 225-2250 3p F F Distribution Circuit Breakers |
| Dimensions (LxWxH) | 8.25cm x 10.5cm x 16cm |
| Current | 225 A |
| Voltage | 690 V |
| Rated frequency | 50 / 60 Hz |
Product details
Frequently asked questions
What are the key ratings: In and Iu?
Rated current (In) is 225 A; the frame rating (Iu) is 250 A.
Can I use 1SDA068091R1 in place of 1SDA068147R1?
No — 1SDA068091R1 is 3-pole, while 1SDA068147R1 is 4-pole. The dimensions and trip unit also differ.
